170° Reversing Back up Rear View Camera CCD For SUBARU FORESTER OUTBACK SEDAN US
product-img-0
product-img-1
product-img-2
product-img-3
product-img-4
product-img-5
Thương hiệu: OEM

170° Reversing Back up Rear View Camera CCD For SUBARU FORESTER OUTBACK SEDAN US

Số Lượng

Hoàn tiền
111%
nếu giả
Mở hộp
kiểm tra
nhận hàng

Thông tin chi tiết

Thương hiệuOEM
Xuất xứ thương hiệuChina
Kích thước15x8x7
SKU3721552488593

MÔ TẢ SẢN PHẨM

Waterproof:IP67-68
TV System:NTSC 60HZ/PAL 50HZ
Working Power (DCV):12V
Camera Dimension:100*13*30mm
Working Power (DCV): 12V
TV System:NTSC 60HZ/PAL 50HZ
Waterproof:IP67-68
Easy install and simple operationReversing Reverse Rear Back up View Camera CCD For SUBARU FORESTER OUTBACK










▲ Specification
Model:472722
Color:Black
Video Color: Colorful
Camera Dimension:100*13*30mm
Sensor:CCD
Effective Pixels: 720*540
Resolution: 520TV lines
Lens Angle: 170°
Working Power (DCV): 12V
Operation Temperature: -20°C+60°C RH95% Max
Storage Temperature: -30°C+60°C RH95% Max
Current Consumption: No more 300mA
TV System:NTSC 60HZ/PAL 50HZ

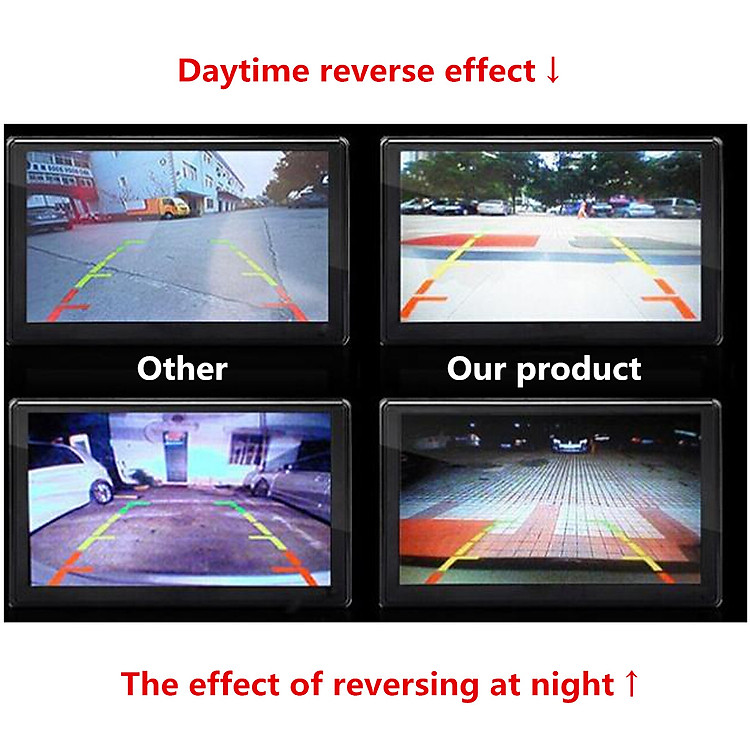

Night Vision View
Waterproof:IP67-68
Fitment:(FOR REFERENCE)
SUBARU FORESTER/IMPREZA(Sedan 3 Carriages)
SUBARU Outback (2007-2012) / Tribeca 2007-2012

▲ Feature
1.Condition:100% Brand new and high quality.
2.With waterproof function, durable
3.Easy install and simple operation
4.High clear CCD camera read out, high-definition and wide viewing angles
5.Ensure your safe driving, to avoid any vehicle accidents

▲ Installation Guide:
1. Take out your stock license plate light at the back of your car
2. Fix the camera to where the stock license plate light was
3. Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power

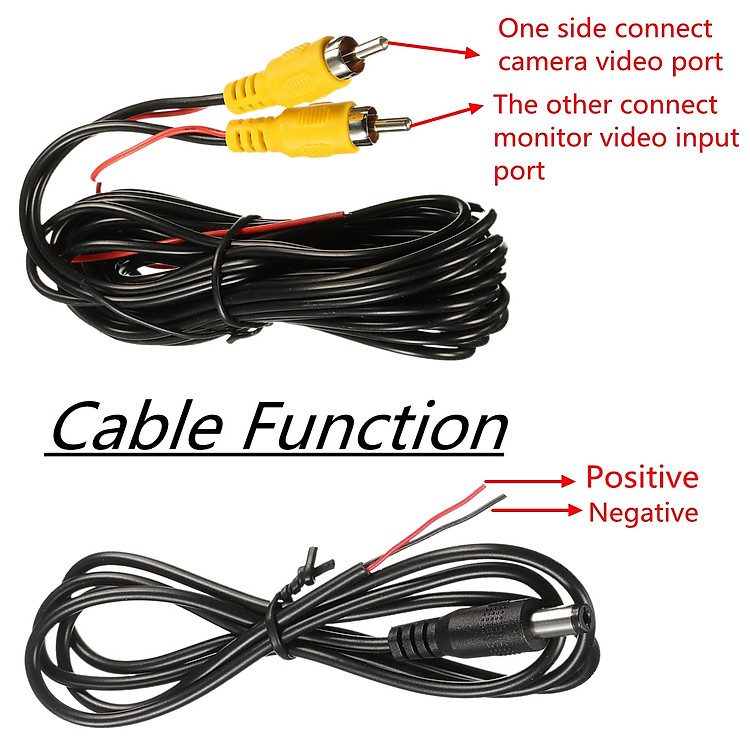

4. Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative

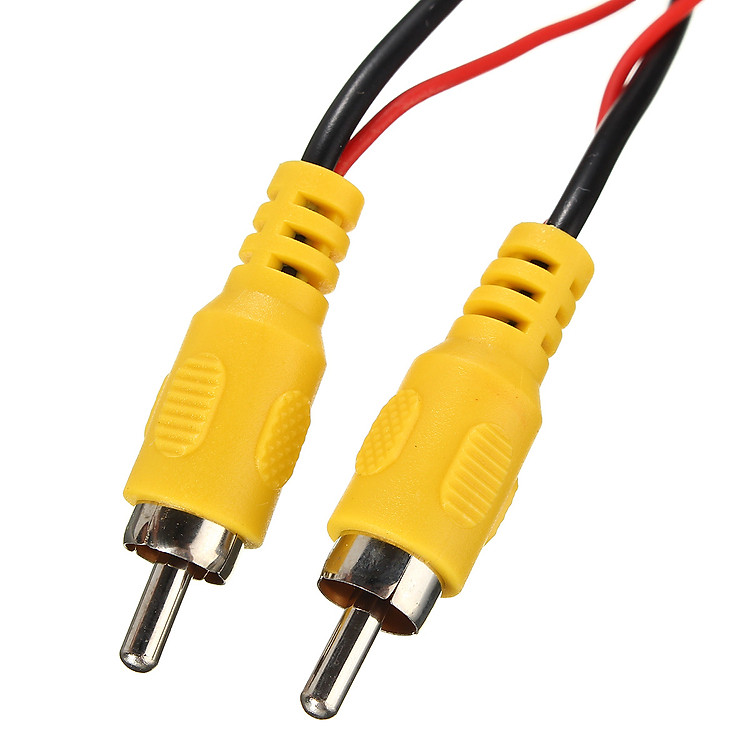

5. Connect the video cable of the camera to the extension cord
6. Connect the extension cord to your car monitor
7. You will see the images when your car is in reverse shift.





▲ Package included

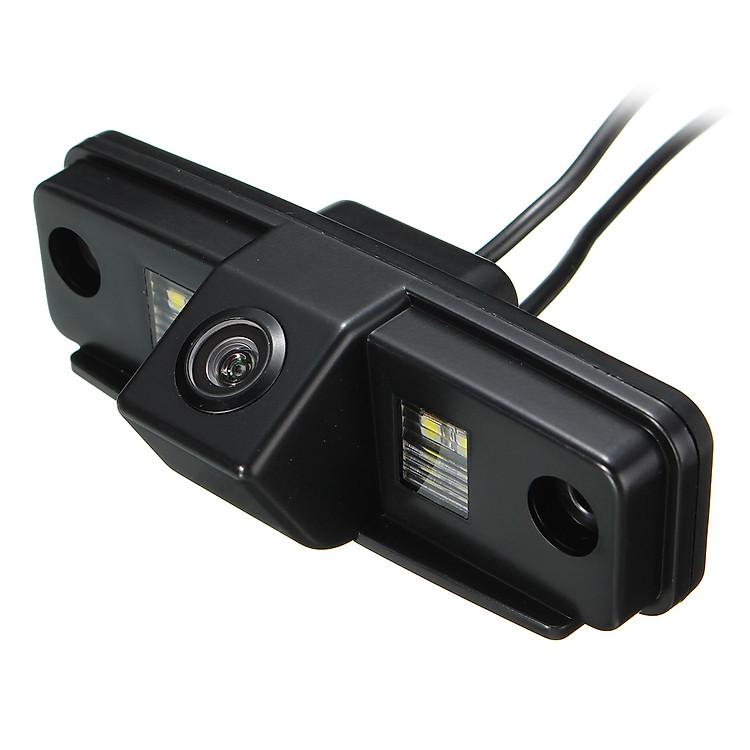

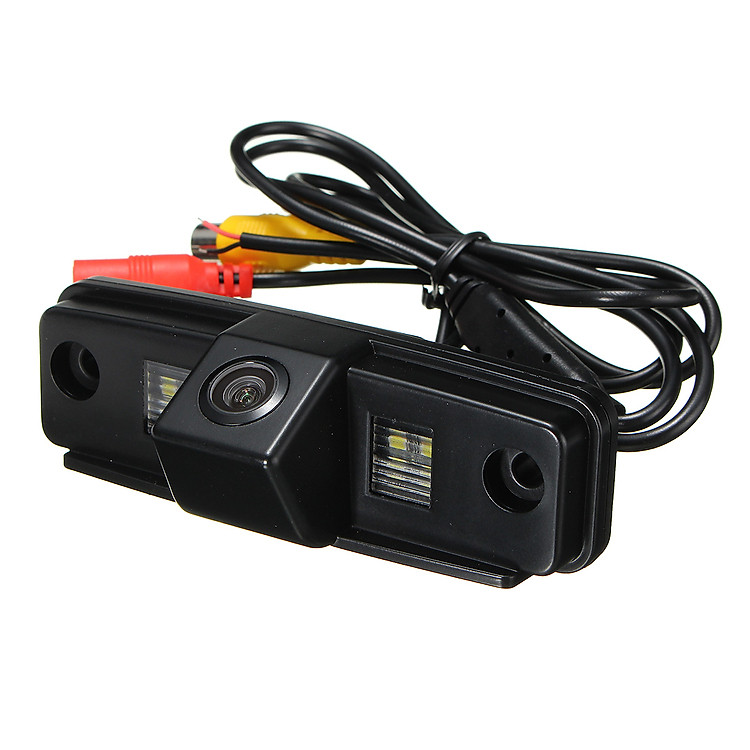

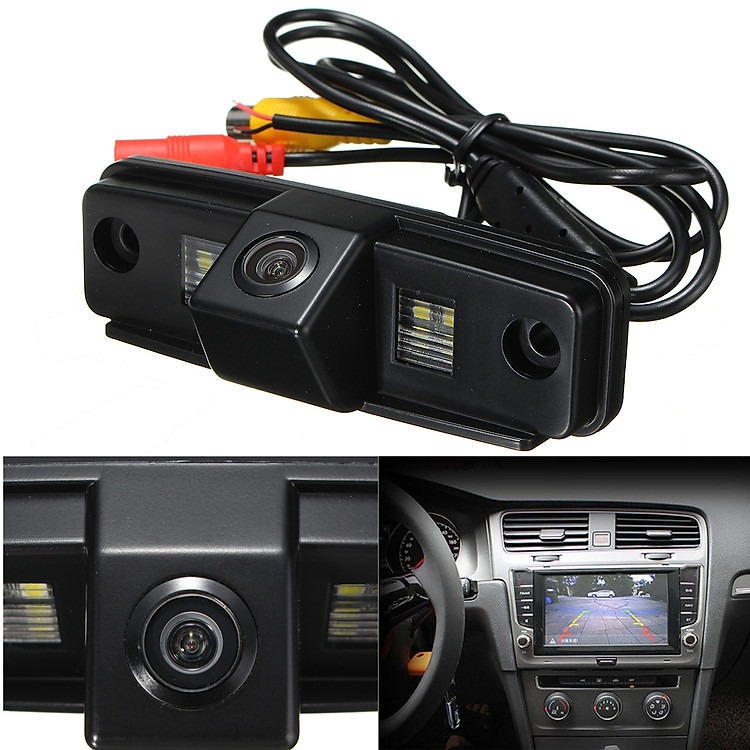

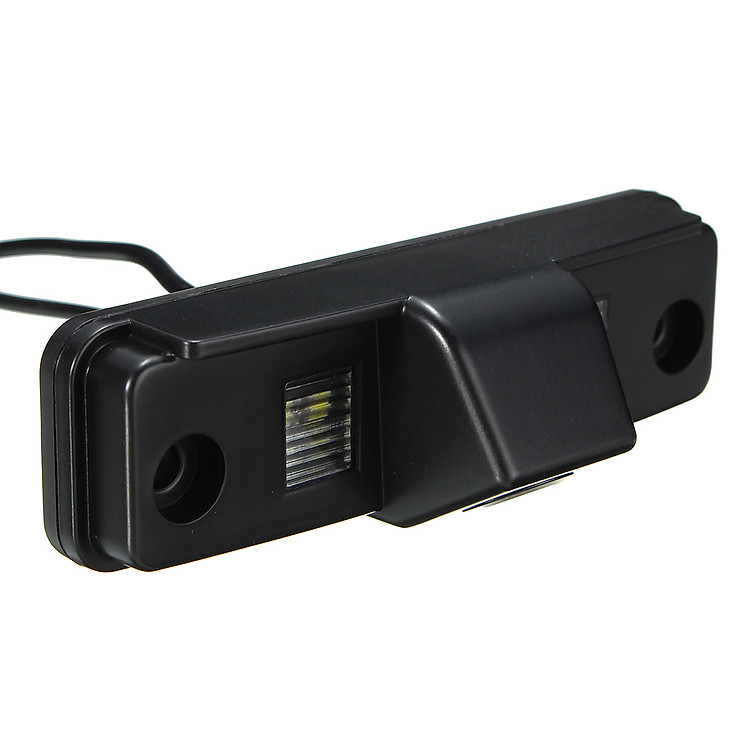

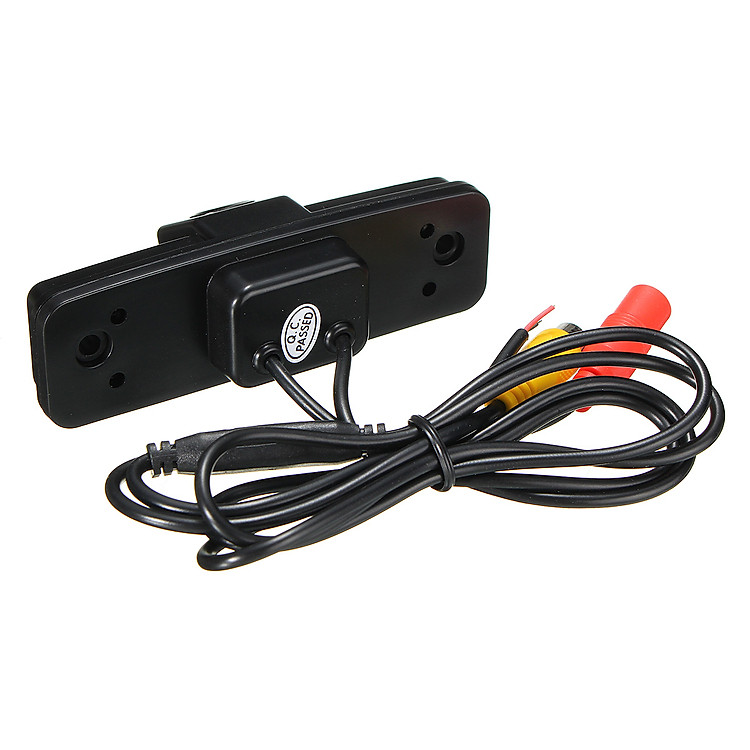

1 x CCD Car Rear View Camera

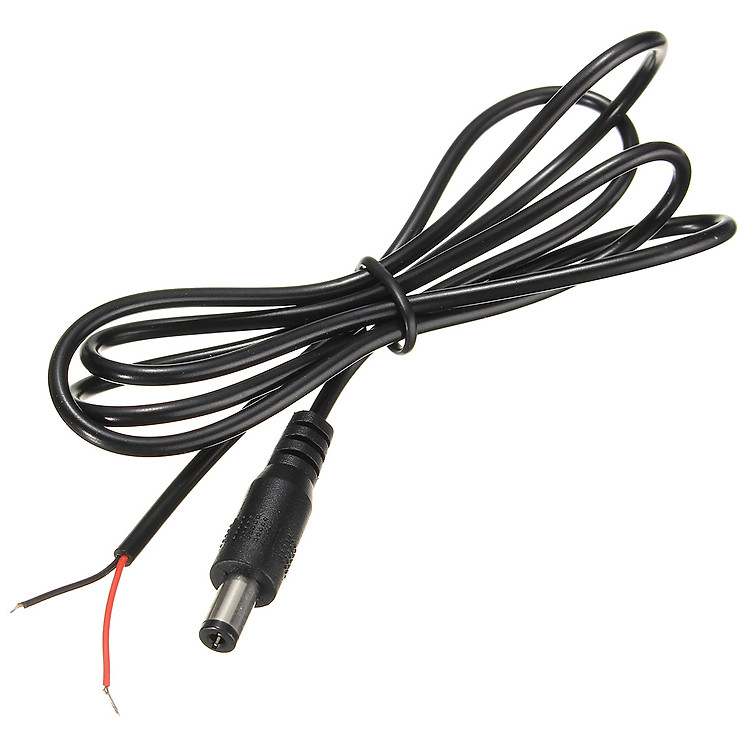

1 x Power cable
1 x Extension cable
1 x User manual
