Bộ lưu điện APC BX1100LI-MS - Hàng Chính Hãng

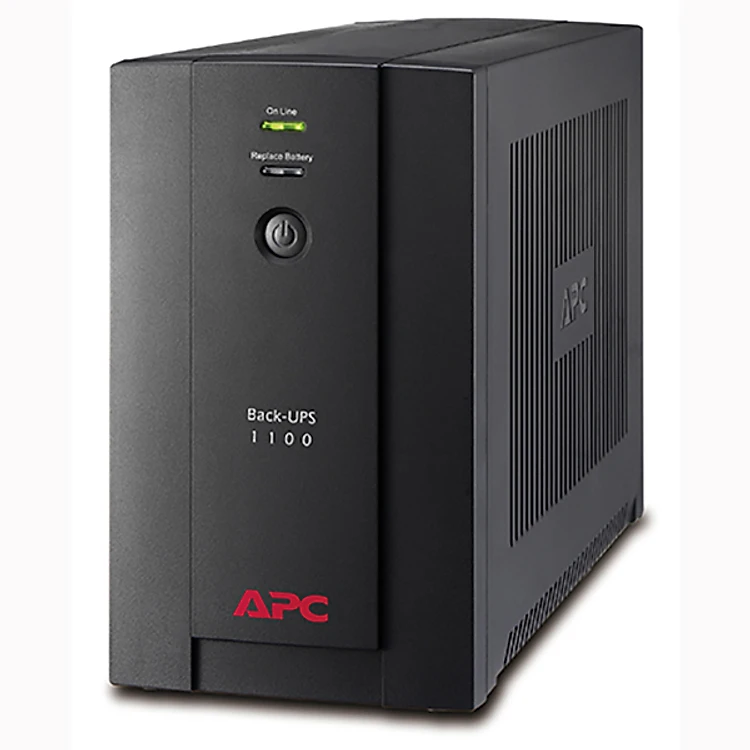

Bộ lưu điện APC BX1100LI-MS
APC Back-UPS 1100VA, 230V, AVR, Universal and IEC Sockets

Output

• Output power capacity

  550Watts / 1.1 kVA

• Max Configurable Power (Watts)

  550Watts / 1.1 kVA

• Nominal Output Voltage

  230V

• Output Frequency (sync to mains)

  50/60 Hz +/-1 Hz

• Output Frequency (not synced)

  50/60 Hz +/-1 Hz

• Topology

  Line Interactive

• Waveform type

  Stepped approximation to a sinewave

• Output Connections
  (2) IEC 320 C13 (Battery Backup)
• Transfer Time

  4ms typical : 6ms maximum

Input

• Nominal Input Voltage

  230V

• Input frequency

  50/60 Hz +/- 3 Hz (auto sensing)

• Input Connections

  IEC-320 C14, NEMA 5-15P

• Cord Length

  1.22meters

• Input voltage range for main operations

  150 – 280 V

• Number of Power Cords

  1

• Type of Input Protection Required

  3-pole breaker

• Maximum Input Current

  10.0A

• Input Power Factor at Full Load

  0.5

Batteries & Runtime

• Battery type

  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

• Included Battery Modules

  1

• Typical recharge time

  6hour(s)

• Replacement Battery

• Expected Battery Life (years)

  2 – 4

• Runtime
• Efficiency

Communications & Management

• Control panel

  LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

• Audible Alarm

  Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

• Surge energy rating

  273Joules

Physical

• Maximum Height

  215mm , 21.5CM

• Maximum Width

  130mm , 13.0CM

• Maximum Depth

  336mm , 33.6CM

• Net Weight

  9.2KG

• Shipping weight

  10.6KG

• Shipping Height

  295mm , 29.5CM

• Shipping Width

  245mm , 24.5CM

• Shipping Depth

  440mm , 44.0CM

• Color

  Black

Environmental

• Operating Temperature

  0 – 40 °C

• Operating Relative Humidity

  0 – 95 %

• Operating Elevation

  0-3000meters

• Storage Temperature

  -15 – 40 °C

• Storage Relative Humidity

  0 – 95 %

• Storage Elevation

  0-9000meters

• Audible noise at 1 meter from surface of unit

  45.0dBA

Conformance

• Approvals

  CE, WEEE

• Standard warranty

  2 years repair or replace
