Technical Specifications

Output power capacity

1.98 KWatts / 2.2 kVA

Max Configurable Power (Watts)

1.98 KWatts / 2.2 kVA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5% at full load

Output Frequency (sync to mains)

47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Topology

Line Interactive

Waveform type

Sine wave

Output Connections

(1) IEC 320 C19 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)

(2) IEC Jumpers (Battery Backup)

Transfer Time

2ms typical

Nominal Input Voltage

230V

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A

Input voltage range for main operations

160 - 286V

Input voltage adjustable range for mains operation

151 - 302V

Number of Power Cords

Other Input Voltages

220, 240

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3hour(s)

Replacement Battery

Expected Battery Life (years)

3 - 5

RBC Quantity

Runtime

Efficiency

Interface Port(s)

SmartSlot

Control panel

Multi-function LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Yes

Available SmartSlot Interface Quantity

Surge energy rating

365Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Maximum Height

435mm, 43.5CM

Maximum Width

197mm, 19.7CM

Maximum Depth

544mm, 54.4CM

Net Weight

48.8KG

Shipping weight

61.9KG

Shipping Height

699mm, 69.9CM

Shipping Width

381mm, 38.1CM

Shipping Depth

762mm, 76.2CM

Color

Black

Units per Pallet

9.0

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-3000meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0-15000meters

Audible noise at 1 meter from surface of unit

45.0dBA

Online thermal dissipation

275.0BTU/hr

Protection Class

IP 20

Approvals

CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE

Standard warranty

3 years repair or replace (excluding battery) and 2 year for battery, optional on-site warranties available, optional extended warranties available

RoHS

Compliant

REACH

REACH: Contains No SVHCs

PEP

Available in Documentation tab

EOLI

Thương hiệu: APC by Schneider Electric

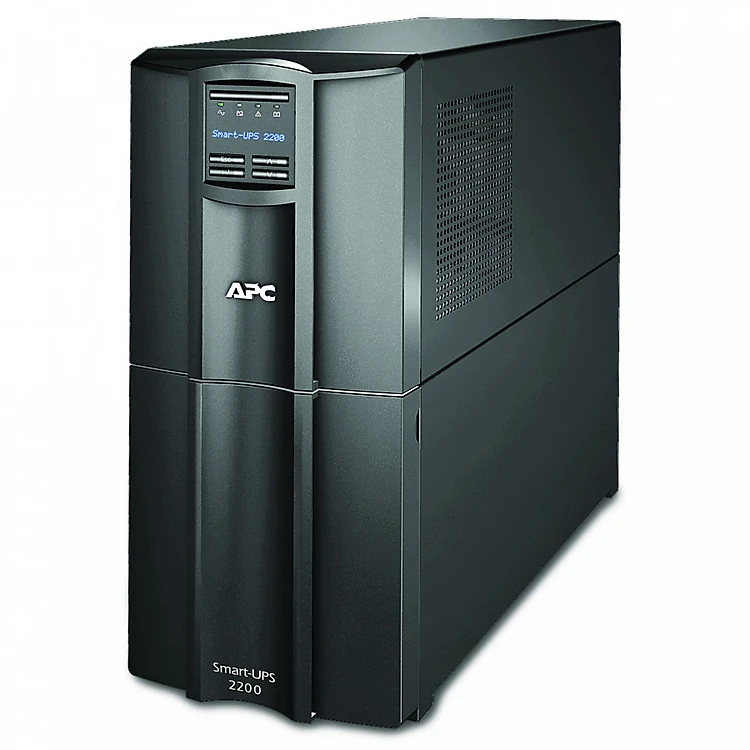

Bộ lưu điện: APC Smart-UPS 2200VA LCD 230V - SMT2200I - Hàng Chính Hãng
