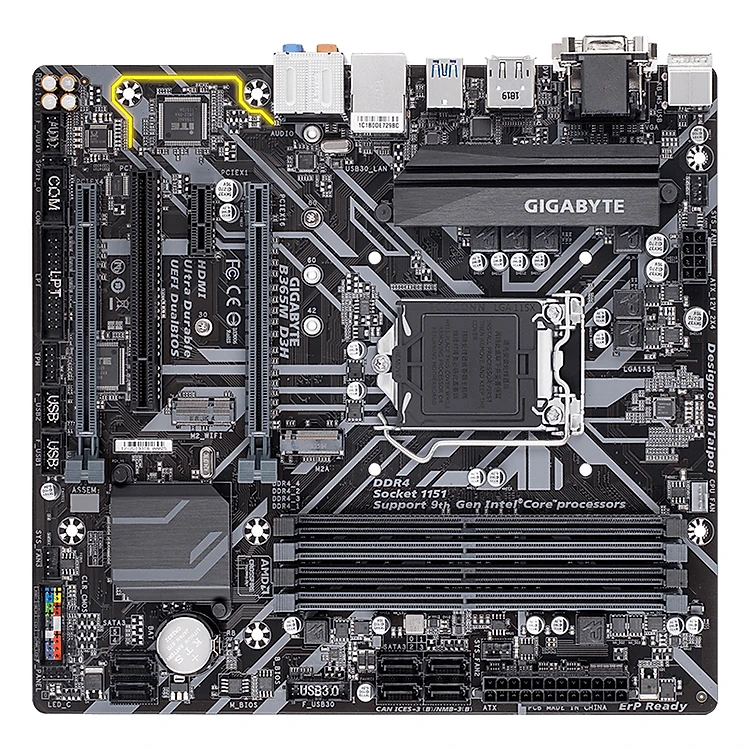

Bo Mạch Chủ Mainboard GIGABYTE B365M D3H - LGA1151 - Hàng Chính Hãng

1. Support for 9th and 8th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package
2. L3 cache varies with CPU

1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 2666/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
   * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel Core i9/i7/i5 processor.

(Please refer "Memory Support List" for more information.)

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
   * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
4. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
   * Support for HDMI 1.4 version and HDCP 2.2.

1. Realtek ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 1 x PCI Express x1 slot
   (All of the PCI Express slots conform to PCI Express 3.0 standard.)
4. 1 x PCI slot
5. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2. 6 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

1. 1 x USB Type-C port on the back panel, with USB 3.1 Gen 1 support
2. 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 6 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 1 x USB 3.1 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
14. 1 x serial port header
15. 1 x parallel port header
16. 1 x Clear CMOS jumper

1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x DisplayPort
5. 1 x HDMI port
6. 1 x USB Type-C port, with USB 3.1 Gen 1 support
7. 3 x USB 3.1 Gen 1 ports
8. 2 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 6 x audio jacks

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. upport for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   AutoGreen
   Cloud Station
   EasyTune
   Easy RAID
   Fast Boot
   Game Boost
   ON/OFF Charge
   Platform Power Management
   RGB Fusion
   Smart Backup
   Smart Keyboard
   System Information Viewer
   USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install

1. Norton Internet Security (OEM version)
2. cFosSpeed
