PROCESSOR

Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket

Onboard graphics output are disabled when using F SKU processors.

CHIPSET

Intel Z490 Chipset

MEMORY

4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/2666/2933 MHz
- 1DPC 1R Max speed up to 5000+ MHz
- 1DPC 2R Max speed up to 4500+ MHz
- 2DPC 1R Max speed up to 4400+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC mode, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)

Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOTS

3x PCIe 3.0x 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)
2x PCIe x1 slots (from PCH)

MULTI-GPU

Supports 2-Way NVIDIA SLI Technology
Supports 3-Way AMD CrossFire Technology

STORAGE

Intel Z490 Chipset

6x SATA 6Gb/s ports
3x M.2 slots (Key M)
- M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
- M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
- Intel Optane Memory Ready
- Supports Intel Smart Response Technology for Intel Core processors

SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel Z490 Chipset

Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 PCIe storage devices

USB

Intel Z490 Chipset

4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector)
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

ASMedia 3241 chipset

1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel

AUDIO

Realtek ALC1220 Codec + ESS SABRE9018Q2C combo DAC

7.1-Channel High Definition Audio
Supports Optical S/PDIF output

LAN

1x Realtek 8125B 2.5G LAN controller

WIFI & BLUETOOTH

Intel AX201

Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps
WiFi 6 Pre-Certified
Supports Bluetooth 5.1 , FIPS, FISMA
The Wireless module is pre-install in the M2 (Key-E) slot

Only support windows 10 64-bit

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump connector
6x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x Chassis Intrusion connector
1x slow mode jumper
1x power button
1x reset button
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x 3-pin CORSAIR LED connector
1x RTD3 connector
1x TBT connector

Thunderbolt card need support RTD3

BACK PANEL PORTS

Clear CMOS Button
PS/2 Keyboard / Mouse Port
2.5G LAN
Wi-Fi /Bluetooth Antenna Connectors
HD Audio Connectors
Flash BIOS Button
USB 2.0 Ports
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
Optical S/PDIF-Out

DIMENSIONS

12 in. x 9.6 in. (30.5 cm x 24.4 cm)
ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows 10 64-bit

BOX CONTENT

MSI does not guarantee the risks or damages caused by changing the cover.
These pictures are for reference only and may vary without notice.

Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....

Thương hiệu: MSI

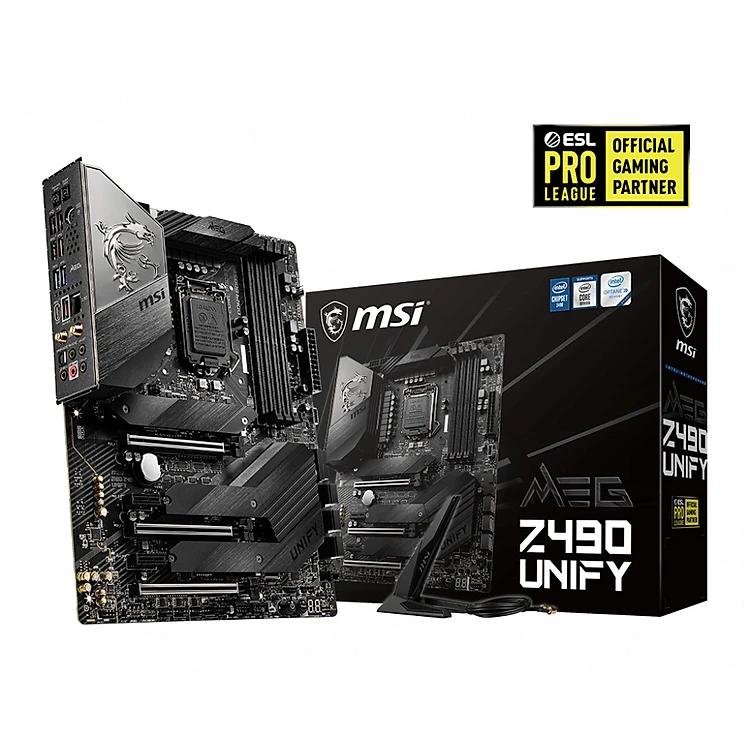

Mainboard MSI MEG Z490 UNIFY (Intel Z490, Socket 1200, ATX, 4 khe RAM DDR4) Hàng Chính Hãng
