OBD2 USB Device ELM327 Compatible Interface with HS-CAN/MS-CAN Switch OBD2 Scanner
Thương hiệu: OEM

OBD2 USB Device ELM327 Compatible Interface with HS-CAN/MS-CAN Switch OBD2 Scanner

Số Lượng

Hoàn tiền
111%
nếu giả
Mở hộp
kiểm tra
nhận hàng

Thông tin chi tiết

Thương hiệuOEM
Xuất xứ thương hiệuChina
Xuất xứchina
SKU1137929390833

MÔ TẢ SẢN PHẨM

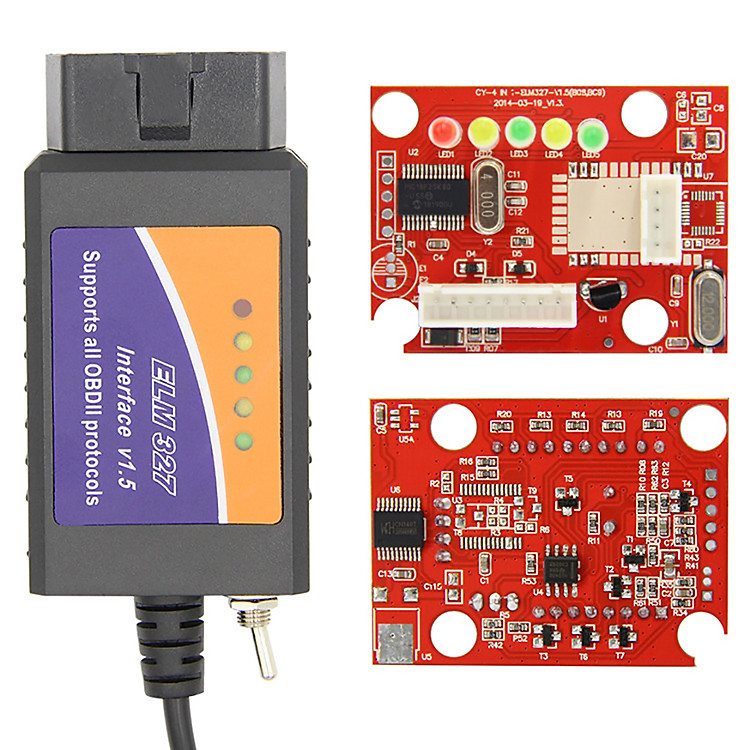

Latest ELM327 includes PIC25K80 and CH340T..
Manufactured modification to include a switch to connect to different CAN buses, MS CAN bus and HS CAN bus..
Designed for FORScan software, compatible with software venders; for FORScan, for Elmconfig, for FF2 and for FoCCCus, plus more..
Support Windows XP and WIN7 32bite..

Description:

Product name: automobile diagnostic instrument

Operating temperature :-20-70

Model: J327-1.5 USB

Voltage: DC12

OBDII Protocols:

SAE J1850 PWM (41.6Kbaud)

SAE J1850 VPW (10.4Kbaud)

ISO9141-2 (5 baud init, 10.4Kbaud)

ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

ISO14230-4 KWP (fast init, 10.4 Kbaud)

ISO15765-4 CAN (11bit ID, 500 Kbaud)

ISO15765-4 CAN (29bit ID, 500 Kbaud)

ISO15765-4 CAN (11bit ID, 250 Kbaud)

ISO15765-4 CAN (29bit ID, 250 Kbaud)

SAE J1939 CAN (29bit ID, 250*Kbaud)

CAN (11*bit ID, 125*Kbaud)

CAN (11*bit ID, 50*Kbaud)

Product Description

Introduction:

With the cable and the one of the supported software vendors you can detected modules which are not visible for regular

OBD2 scanners. This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.

Basic Features:

Reset fault /trouble codes / parameter ids (PIDs)

Change car configuration data

Run tests

Services procedures

Program certain models

Pin Configurations:
Switch position one: HS CAN - Occupies pins 6 and 14

Switch position two: MS CAN - Occupies pins 3 and 11

Supported Software:

For FORScan

For Elmconfig

For FoCCCus

For FF2

ELM327 supports HS CAN from the stock, because for HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.

Package Dimensions:7.7 x 5.8 x 1.6 inches

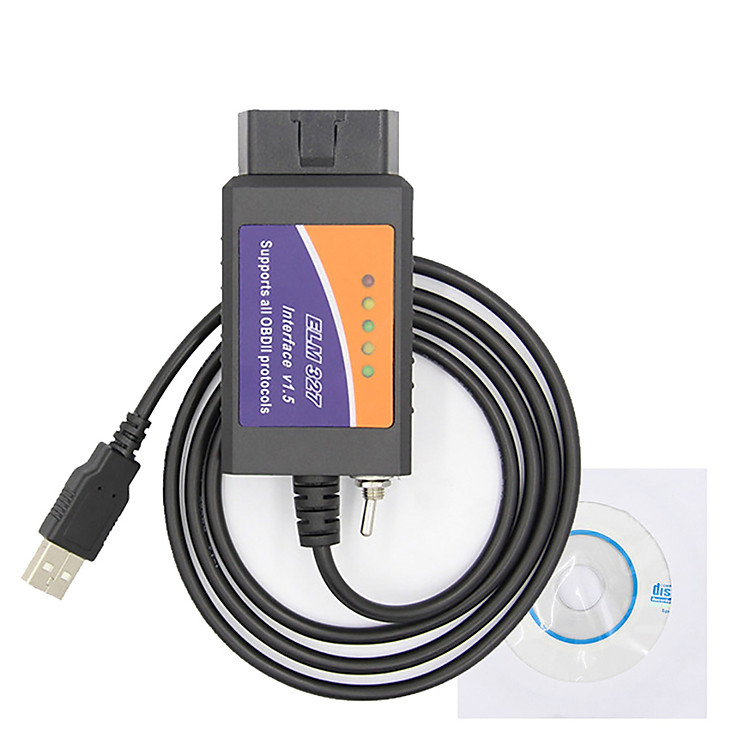

Package Includes:

1 x ELM327 Diagnostic Interface

1 x CD

Note:

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
