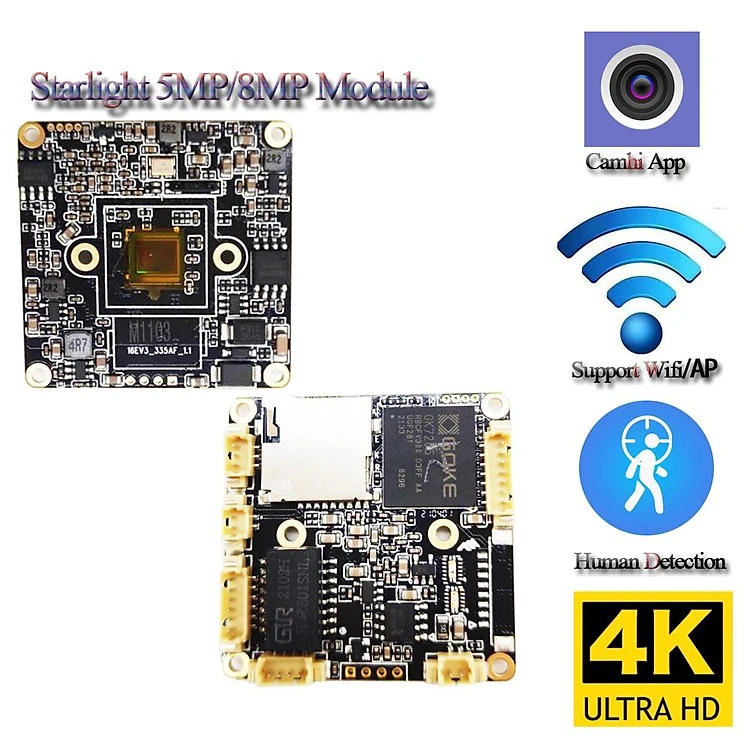

Starlight 8MP 3840*2160 4K Wireless IP Camera Module Human Detection Motion Alarm RTSP Audio Onvif TF Card Slot WIFI Camhi APP

Using bellow code coupon before payment to save more!

This Module is powered with 12V not 5V, and support onvif two way audio interfaces and tf card slot

Note: 8MP version Built-in 6MP 3.6mm Lens and ircut in default, you can change the lens by yourself, it supports H.265 only, and the main stream is 3840*2160(8MP) only cannot be changed to others, if you want to connect it to nvr make sure your NVR Supports 4k and H.265. onvif version is onvif 2.4

Dear customer,

This board is suitable for bullet case, dome case with wifi, TF Card and audio interface, if you choose the lens, it will M12 interface lens and free IRCUT, if you no lens version will no ircut included,the hole distance for ircut mounter is 20mm

Package: free Lan Cable *1, Wifi Module(optional)*1, Free fpc wifi Anttena(optional)*1, IRCUT&Lens(Optional)

For EU countries, if order total price is not more than 150EURO, the price includes VAT(Custom tax) already. no need extra payment when doing custom clearance, if your custom charges you, feel free to contact us. For order be over EURO150, the precharged VAT will be reduced, that may charge you when doing the custom clearance thanks

Specification:

8MP(4K): Using Starlight Sony 4K IMX415 CMOS Sensor can output 3840*2160 Image

5MP Starvis： Using starlight Sony IMX335 Sensor, output image 2560*1920

*1080P :ingenic chip + SC2235 CMOS Sensor, max output 1920*1080 Image

5MP: Using 5MP CMOS Sensor, can output 2560*1920 image
4MP: 1/3" 4MP CMOS Senso, can ouput 2560*1440 Image

* Day / Night mode support external triggering by CDS (or 3.5V ~ 5V voltage signal);

* Support standard CS/M12 lens

* Operation Temperature -20C ~ +50C;

* PAL / NTSC selectable on OSD menu.

Support TF Card Storage max 128GB
5MP/4MP support Supports both H.265&H.264, 8MP supports H.265 only
5MP/4MP/8MP Version Supports Human detection, Motion detection and Audio alarm, 1080P supports motion detection and motion tracking and audio alarm
5MP/4MP/8MP Version Can support human tracking after installed with pan and tilt house, 1080P supports motion tracking after installing pan&tilt house

*Self AP: can connect the wifi emitted by the camera itself

*Support onvif and RTSP

FAQ:

Does the camera have AP wifi?

Yes, but need to choose the option (add wifi module) just plug the power, don't connect the RJ45 network cable and dont connect the camera to your wifi router, you will check a wifi with name start with IPCam, the password for the AP wifi is 01234567.

What is the default username and password?

Username: admin pwd: admin

What is the Phone APP?

It is camhipro or Camhi

What is free returning?

If the camera doesnt meet your expection or other reason you dont want it. you can ask free return with no reason,we will provide prepaid shipping lable and you dont need to pay shipping fee. this service supports most countries. if it has shown "Free Return", then your address will have the free return service

CMS and Browerser View:

2769edd997351d15f1ee225b4e51443d.jpg?size=357859&height=506&width=800&hash=4a4fa83f2f797f98ec8569da88ce4ab8 28a5e69d1070f7c3a66ce0a59c148fab.jpg?size=225178&height=351&width=800&hash=8e0f5d2cd699349be3f47dfb0b0dbc0d 0619202b7919eae4954ae1f5502578bd.jpg?size=138807&height=434&width=800&hash=245dc74d99f8b6430564472e4e242d89

499fb54a745cb768a3b1e53b55defb38.jpg?size=101203&height=405&width=800&hash=91ed668359f87e5b49f25a6ce053eaff

8bed759bad1236b5045124f8a5785fe8.jpg?size=130752&height=409&width=800&hash=2fd2207930475021a7cb1026b3477630

Phone App View:

System	Embedded RTOS design, dual core 32-bit DSP, pure hardware compression, watchdog
Sensor	5MP: Starlight 5MP CMOS Sensor f 1080P: Starlight 1/2.8' SC2235 CMOS support day and night conversion (supports optional IR-CUT) sense infrared photo resistor signal linkage support, support for CS/ M12 mount lens; Color 0.0001Lux /F1.2, black and white 0.00001 Lux/F1.2 ;
Video	H.264, support dual-strea; support stream 0.1M ~ 6Mpbs adjustable; support frame rate from 1 to 15 frames / sec adjustable;
Resolution	main stream: 1080P: 19201080(1080P)/ 5MP: 25601920/25601440/ 4MP: 25601440/8MP: 3840*2160
Network	1 RJ45, 10/100M Ethernet adaptive interface; support RTSP / FTP / PPPOE / DHCP / DDNS / NTP / UPnP network protocols;
Photoresistor	1 * photoresistor port, support photoresistor input signal actived with picture, IRCUT and IR light
Basic function	Support WEB configure, support for OSD, support real-time video transmission, support mobile surveillance, support for mobile detection alarm center after the screen pop-up reminders and linkage; supports JPEG capture; support unified client remote monitoring software, provide perfect the SDK development package;
ONVIF	Support
Moblie	Support (iPhone, Windows Mobile, BlackBerry, Symbian, Android)
Others	DC 12V power supply; Power consumption - 3W, 38mm * 38mm size; Fit B1 Cable

5MP/4MP interfaces:
