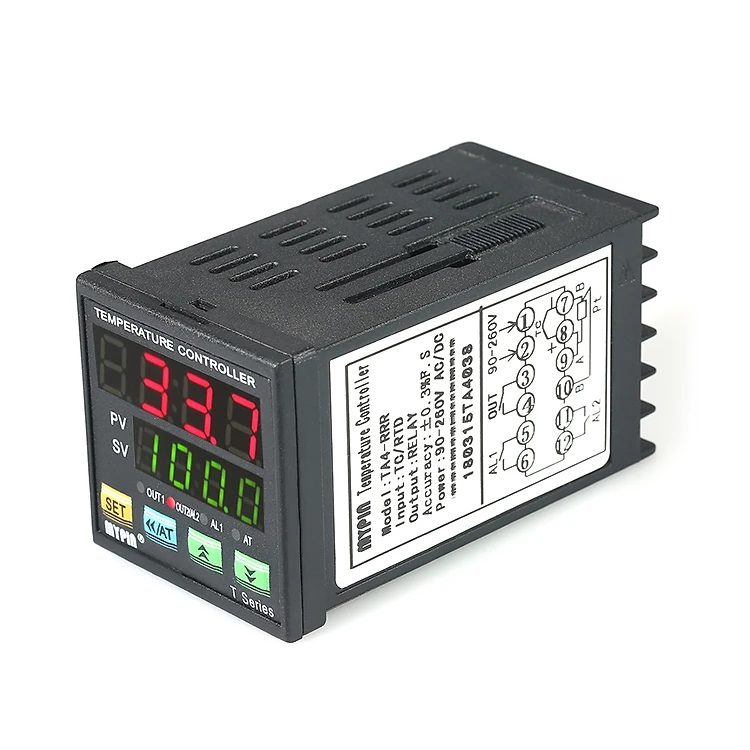

Automatic Digital LED PID Temperature Controller Thermometer RRR 2 Alarm Relay Output TC/RTD Input
1.260.000₫
Sản phẩm đã hết hàng
Bạn có thể xem các sản phẩm tương tự.Mô tả sản phẩm
This is a dual display universal digital programmable temperature controller that supports many types of thermocouple sensor. It can be powered by 90~265V AC/DC.
Features:
Dual LED display, settable unit for Fahrenheit(F) and Celsius(C).
Wide temperature display range: -199~1800C; Accuracy: 0.3%F.S2dgt.
Auto-tuning PID adjustment to choose for different applications or environments to be controlled.
Suitable for many TC or RTD input, precise, stable and simple for operation.
Widely applied to auto system in line of mechanism, chemical industrial, chinaware, metallurgy(etc.) to control the temperature.
Specifications:
Model: TA4-RRR
Material: ABS
Power Supply: 90~265V AC/DC
Consumption: 5VA
Display Range: -199~1800C / -326.2~3272F
Accuracy: 0.3%F.S2dgt
Sampling Cycle: 300ms
Main Output: RELAY: Normal Open AC250V/5A DC 30V/5A COSφ=1
Alarm: 2 RELAY: RELAY: Normal Open AC250V/5A DC 30V/5A COSφ=1
Thermocouple Support: T/C(K,J,S,E) / RTD(Pt100)
T/C Input: K: 0~1200C; J: 0~1200C; S: 0~1600C; E: 0~1000C
RTD Input: Pt100: -199~600C
Withstand Voltage Strength: 1500V Rms(Between Power Terminal and the Housing)
Installation Resistance: Min. 50MΩ(500V DC)(Between Power Terminal and the Housing)
Environment Temperature: 0~50C / 32~122F
Storage Temperature: -10~60C / 14~140F
Environment Humidity: 35~85%RH
Item Size: 8.5 * 4.7 * 4.7cm / 3.35 * 1.85 * 1.85in
Item Weight: 121g / 4.27oz
Package Size: 10.3 * 6.5 * 5.2cm / 4.06 * 2.56 * 2.05in
Package Weight: 151g / 5.33oz
Package List:
1 * Temperature Controller
2 * Brackets
1 * User Manual (English)
Features:
Dual LED display, settable unit for Fahrenheit(F) and Celsius(C).
Wide temperature display range: -199~1800C; Accuracy: 0.3%F.S2dgt.
Auto-tuning PID adjustment to choose for different applications or environments to be controlled.
Suitable for many TC or RTD input, precise, stable and simple for operation.
Widely applied to auto system in line of mechanism, chemical industrial, chinaware, metallurgy(etc.) to control the temperature.
Specifications:
Model: TA4-RRR
Material: ABS
Power Supply: 90~265V AC/DC
Consumption: 5VA
Display Range: -199~1800C / -326.2~3272F
Accuracy: 0.3%F.S2dgt
Sampling Cycle: 300ms
Main Output: RELAY: Normal Open AC250V/5A DC 30V/5A COSφ=1
Alarm: 2 RELAY: RELAY: Normal Open AC250V/5A DC 30V/5A COSφ=1
Thermocouple Support: T/C(K,J,S,E) / RTD(Pt100)
T/C Input: K: 0~1200C; J: 0~1200C; S: 0~1600C; E: 0~1000C
RTD Input: Pt100: -199~600C
Withstand Voltage Strength: 1500V Rms(Between Power Terminal and the Housing)
Installation Resistance: Min. 50MΩ(500V DC)(Between Power Terminal and the Housing)
Environment Temperature: 0~50C / 32~122F
Storage Temperature: -10~60C / 14~140F
Environment Humidity: 35~85%RH
Item Size: 8.5 * 4.7 * 4.7cm / 3.35 * 1.85 * 1.85in
Item Weight: 121g / 4.27oz
Package Size: 10.3 * 6.5 * 5.2cm / 4.06 * 2.56 * 2.05in
Package Weight: 151g / 5.33oz
Package List:
1 * Temperature Controller
2 * Brackets
1 * User Manual (English)
