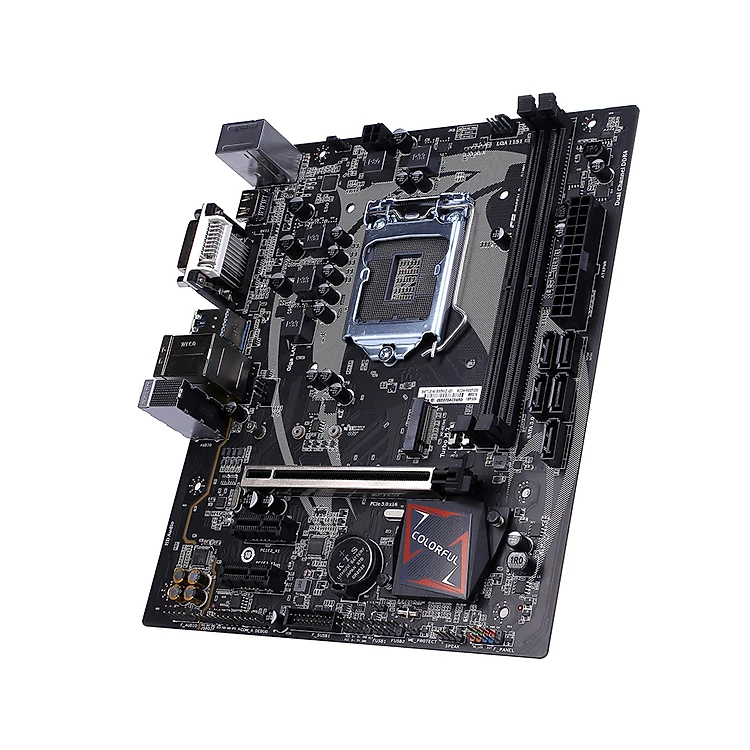

Colorful BATTLE-AX B365M-D V20 Motherboard Gaming Mainboard Support Intel LGA1151 Coffee Lake-S processors
Ngừng kinh doanh
Xem Sản Phẩm Tương Tự
Thông tin chi tiết
| Thương hiệu | Colorful |
| Xuất xứ thương hiệu | Trung Quốc |
| Xuất xứ | Trung Quốc |
| Kích thước | 225 x 185mm |
| Trọng lượng | 360g |
| SKU | 7706747258546 |
MÔ TẢ SẢN PHẨM
Description:
Colorful BATTLE-AX B365M-D V20 motherboard adopts Intel B365 chipset, supporting Intel LGA1151 Coffee Lake-S series processor and SATA3.0 ports, which delivers great performance enchantment to system.
Features:
Support Intel LGA1151 Coffee Lake-S processors, bring superb performance experience.
Provide 2 DIMM slots, support dual channel DDR4 2133/2400/2666MHZ memory.
SATA3.0 6Gb/s ports increase the data transfer rate between the motherboard and internal storage devices and USB 3.1 port speeds up the data transfer rate.
Realtek RTL8111H 1000M LAN delivers super fast network responsiveness for game, office and downloading use.
ALC662 6-channel audio chipset and NCT5567D IO chip prevent the noise disturbance of high-frequency signal from the complex circuit.
Adopt six protection technologies including overload protection, I/O OVP, anti-static, moisture-resistance, lightning protection, high temperature resistance, to ensure more stable running of the motherboard.
Support Intel Optane technology and NVME standard.
Support ACPI S3/S4/S5/G3 and EUP functions, it also supports USB keyboard and mouse and network S5 wake-up.
High quality PCB plate ensures a longer service life and boost the ultimate performance.
Specification:
Motherboard series: Intel chipset, BATTLE-AX series
Chipset: Intel B365
Processor: Support Intel LGA1151 Coffee Lake-S processors
Memory: 2 DIMM slots, support dual channel DDR4 2133/2400/2666MHz memory
Graphics support: 1*PCI Express3.0x16 slot
SATA ports: 5*SATA3.0 6Gb/s ports
Board I/O: 1*PS2 port; 1*VGA port,1*HDMI port,1*DVI port; 4*USB 2.0 ports,2*USB 3.1 Gen1 ports; 1*RJ45 1000M LAN; 3*audio ports; （onboard： 2*USB2.0 and 1*USB3.1 headers,1*COM header）
Expansion Slots: 1*PCI Express 3.0x1 slots, 1*M.2 slot
BIOS: 128M UEFI
Power management: Support 65W processors
Hardware monitor: CPU Fan speed Controlled, SYSTEM Fan speed Monitoring, CPU Temperature Monitoring, System Temperature Monitoring, and Voltage monitoring
LAN: Realtek RTL8111H 1000M LAN, provides 10/100/1000Mb Ethernet
Audio: ALC662 6-channel audio chipset
Other features: Support ACPI S3/S4/S5/G3; Support USB KB/MS wake-up; Support phone call startup, timing boot, network S5 wake-up
PCB size: 225*185mm mATX
Item weight: Approx. 360g /12.7oz
Package size: 27 * 26 * 5.8cm /10.63 * 10.24 * 2.28in(L * W * H)
Package weight: 700g /24.69oz
Package list:
1 * BATTLE-AX B365M-D V20 Motherboard
2 * SATA Cables
1 * I/O Shield
1 * Driver CD
1 * User Manual
Colorful BATTLE-AX B365M-D V20 motherboard adopts Intel B365 chipset, supporting Intel LGA1151 Coffee Lake-S series processor and SATA3.0 ports, which delivers great performance enchantment to system.
Features:
Support Intel LGA1151 Coffee Lake-S processors, bring superb performance experience.
Provide 2 DIMM slots, support dual channel DDR4 2133/2400/2666MHZ memory.
SATA3.0 6Gb/s ports increase the data transfer rate between the motherboard and internal storage devices and USB 3.1 port speeds up the data transfer rate.
Realtek RTL8111H 1000M LAN delivers super fast network responsiveness for game, office and downloading use.
ALC662 6-channel audio chipset and NCT5567D IO chip prevent the noise disturbance of high-frequency signal from the complex circuit.
Adopt six protection technologies including overload protection, I/O OVP, anti-static, moisture-resistance, lightning protection, high temperature resistance, to ensure more stable running of the motherboard.
Support Intel Optane technology and NVME standard.
Support ACPI S3/S4/S5/G3 and EUP functions, it also supports USB keyboard and mouse and network S5 wake-up.
High quality PCB plate ensures a longer service life and boost the ultimate performance.
Specification:
Motherboard series: Intel chipset, BATTLE-AX series
Chipset: Intel B365
Processor: Support Intel LGA1151 Coffee Lake-S processors
Memory: 2 DIMM slots, support dual channel DDR4 2133/2400/2666MHz memory
Graphics support: 1*PCI Express3.0x16 slot
SATA ports: 5*SATA3.0 6Gb/s ports
Board I/O: 1*PS2 port; 1*VGA port,1*HDMI port,1*DVI port; 4*USB 2.0 ports,2*USB 3.1 Gen1 ports; 1*RJ45 1000M LAN; 3*audio ports; （onboard： 2*USB2.0 and 1*USB3.1 headers,1*COM header）
Expansion Slots: 1*PCI Express 3.0x1 slots, 1*M.2 slot
BIOS: 128M UEFI
Power management: Support 65W processors
Hardware monitor: CPU Fan speed Controlled, SYSTEM Fan speed Monitoring, CPU Temperature Monitoring, System Temperature Monitoring, and Voltage monitoring
LAN: Realtek RTL8111H 1000M LAN, provides 10/100/1000Mb Ethernet
Audio: ALC662 6-channel audio chipset
Other features: Support ACPI S3/S4/S5/G3; Support USB KB/MS wake-up; Support phone call startup, timing boot, network S5 wake-up
PCB size: 225*185mm mATX
Item weight: Approx. 360g /12.7oz
Package size: 27 * 26 * 5.8cm /10.63 * 10.24 * 2.28in(L * W * H)
Package weight: 700g /24.69oz
Package list:
1 * BATTLE-AX B365M-D V20 Motherboard
2 * SATA Cables
1 * I/O Shield
1 * Driver CD
1 * User Manual
