This is a kind of quality 2-phase stepper motor diver, built-in high working performance control chip, with higher response frequency and faster starting speed. Intelligent adjustment design, it will automatic adjust according to the positional deviation. The driver voltage is DC24V-70V, which is suitable for two-phase stepper motor with max 5.6A current. You can have a try.

Features:
Built-in high working performance control chip, with higher response frequency and faster starting speed.
Intelligent adjustment design, it will automatic adjust according to the positional deviation, say goodbye to step-missing.
The current will intelligent adjust according to the load, help reducing temperature rise, protect the motor from mechanical damage to prolonging service time.
The driver voltage is DC24V-70V, which is suitable for two-phase stepper motor with max 5.6A current.
Multiple protections design, over current, over voltage and the position out of tolerance are all protected.
It features the characteristics of low noise, low vibration, low temperature rise and high heat dissipation effect.
Equipped with LED indicator light for indicator fault warning of various reasons.
Suitable for 57HS1.82-phase stepper motor.

Specifications:

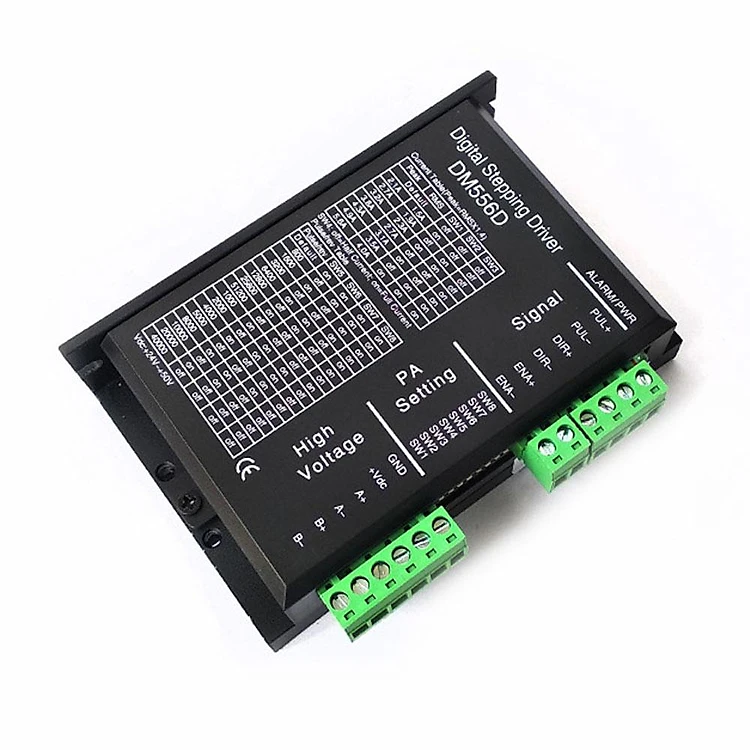

Name: Stepper Motor Driver
Model: DM556D
Material:
Voltage ranges: DC24V-70V
Max current: 6.5A
Pulse frequency: 0-200KHz
Item size: 112 * 75 * 33mm / 4.41 * 2.95 * 1.30in
Item weight: 280g / 9.88ounce
Package size: 125 * 90 * 50mm / 4.92 * 3.54 * 1.97in
Package weight: 350g / 12.35ounce

Packing List:
1 * Stepper Motor Driver

Giá sản phẩm trên Tiki đã bao gồm thuế theo luật hiện hành. Bên cạnh đó, tuỳ vào loại sản phẩm, hình thức và địa chỉ giao hàng mà có thể phát sinh thêm chi phí khác như phí vận chuyển, phụ phí hàng cồng kềnh, thuế nhập khẩu (đối với đơn hàng giao từ nước ngoài có giá trị trên 1 triệu đồng).....

Thương hiệu: OEM

DM556D 2-Phase Stepper Motor Driver DC24V-70V Driver Voltage Max 5.6A Current 0-200KHz Pulse Frequency Step Motor Drive
