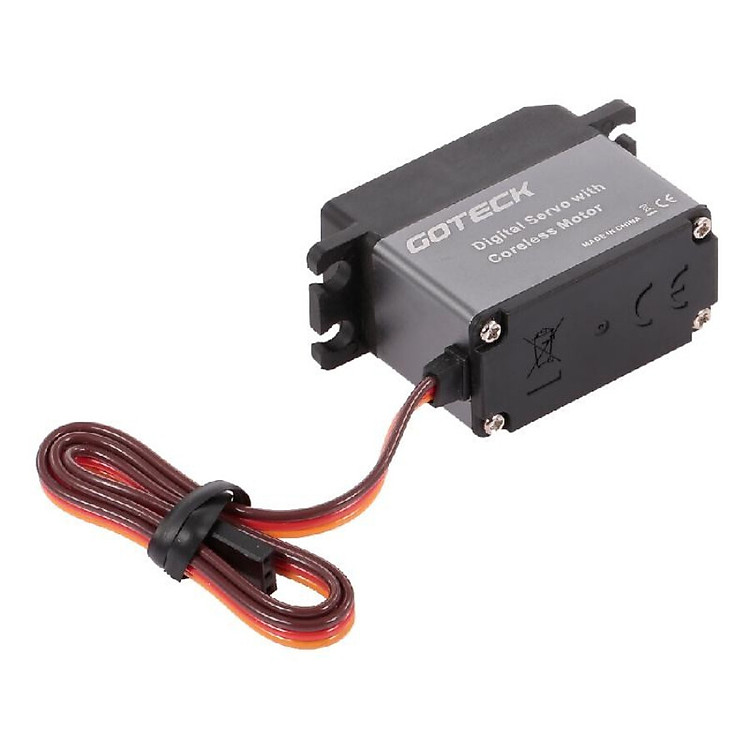

GOTECK HC1621SG Metal Gear High Torque 20KG Digital Servo with Coreless Motor Waterproof for RC Car Helicopter Boat Robot
1.054.000
Sản phẩm đã hết hàng
Bạn có thể xem các sản phẩm tương tự.Mô tả sản phẩm
GOTECK HC1621SG servo are designed for RC model vehicles. It is waterproof, sensitive and with high torque and power. High performance digital servo with low noise, fast heat dissipation. This new item is a very good choice for hobbyists. It will not let you down!
Features:
Functions: High torque and power, waterproof, coreless, low noise, fast heat dissipation, high efficiency of the motor system.
The digital servo is fast, flexible, convenient, reliable, compatible, and has strong anti-interference ability.
Metal gear design makes the servo have high torque and power.
Coreless motor provides high efficiency of the motor system.
Double ball bearing with low noise, fast heat dissipation.
The design of middle part metal shell material makes the servo waterproof.
If you have any problem, please feel free to contact with us without hesitation.
Specification:
Item Name: HC1621SG digital servo
Control System: Positive PWM control (1500 usec neutral)
Operation Voltage Range: 6.0V-7.4V
Operation Temperature Range: -20C°- +60C°
Test Voltage:
At 6.0V
Torque: 16kg-cm
Idle Speed: 0.10sec / 60°
Idle Current: 350mA
Running Current: 3300mA
At 7.4V
Torque: 20kg-cm
Idle Speed: 0.09sec / 60°
Idle Current: 400mA
Running Current: 4000mA
Death Band Width: 1 usec
Circle: >15000 times/idle load
Operation Travel: 55°±5°
Direction: Anti-clockwise/ pulse travel 1500 to 2100 usec
Drive Type: FET drive
Motor Type: Coreless
Potentiometer Type: Indirect drive
Amplifier Type: Digital
Size: 40*20*37.2mm
Weight: 66g (without accessories)
Ball Bearing: Double ball bearing
Gear Material: Import steel gear
Case Material: Fiber plus fiber/ aluminum medium
Connector Wire Length: 300mm
Connector Wire Gauge: 22AWG, JR universal
Brown: Negative
Red: Positive
Orange: Signal
Application: Car model; fixed-wing aircraft; helicopter; robot
Package Information:
Package Size: 8 * 6* 3.3cm / 3.15 * 2.36 * 1.30in
Package Weight: 115g
Gift Box Package
Package List:
1 * Servo
1 * Part Set
