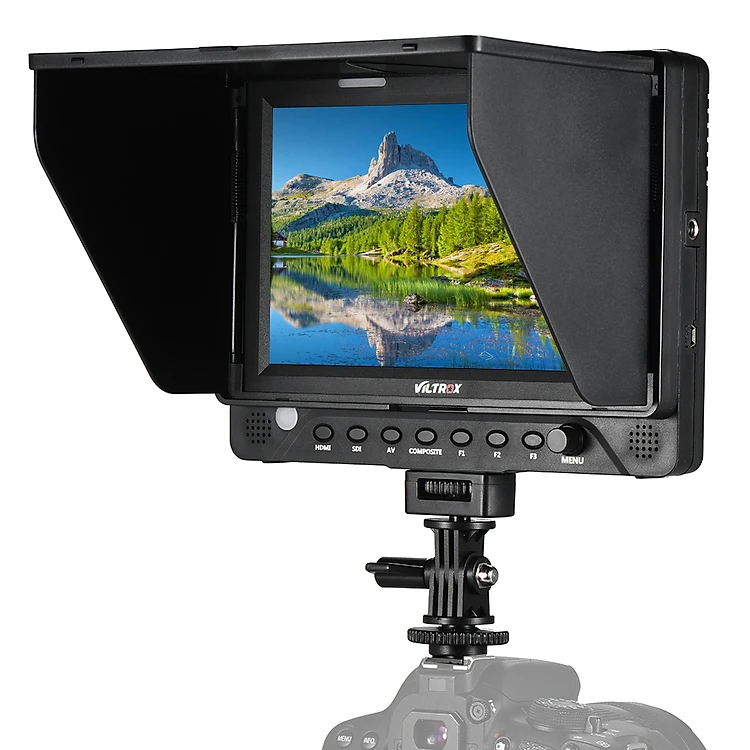

Viltrox DC-70 PRO is a 7inch 1920 x 1200 ultra HD field monitor. It features peaking, false color, exposure, monochrome, histogram, audio bar and etc professional video making functions. It has HD, SDI, AV and TALLY signal input and HD, SDI output and supports 4K (3840 x 2160)(4096 x 2160) signal transmission. There are loudspeaker, 3.5mm earphone jack and XLR port too. It is really a perfect monitor for studio, broadcast, filming and other fields.
7inch IPS panel of 1920 x 1200 high definition, clearly display every detail.
High Definition Multimedia Interface IN OUT, SDI IN OUT, AV and TALLY IN; With 3.5mm headphone jack, XLR port and loudspeaker.
Support 4K signal transmission, including (3840 x 2160) 24/25Hz and (4096 x 2160) 24Hz.
Auxiliary functions include peaking color, false color, exposure, monochrome, aspect ratio, pix to pix, scan mode, flip H/V, freeze, zoom, camera mode, screen mark, mark ratio, mark color, histogram, audio bar.
Can be powered by NP-F series battery or DC cable. (Not included.)
A sunshade to block sunlight and protect the screen when unused.
A hot shoe adapter for you to mount it on camera easily, angle adjustable.
Model: DC-70 PRO
Screen: 7inch TFT
Resolution: 1920 x 1200
Input Jack: High Definition Multimedia Interface, SDI, AV, TALLY
Output Jack: High Definition Multimedia Interface, SDI
Audio: Loudspeaker, 3.5mm Headphone Port, XLR Port
Peaking: OFF, Low, High
Peaking Color: Red, Green, Blue
Exposure: OFF, 70IRE, 100IRE
Monochrome: OFF, Grey, Red, Green, Blue
Aspect Ratio: Auto, 4:3, 14:9, 16:10, 16:9, 1.85:1, 2.35:1, Full
Scan Mode: Under Scan, Over Scan
Flip: Flip-H, Flip-V
Zoom: OFF, 2X, 3X, 4X, 5X
Screen Mark: OFF, 80%, 85%, 90%, 93%, 96%
Mark Ratio: OFF, 4:3, 2.35:1, 1.85:1
Mark Color: White, Black, Red, Green, Blue
Mark Thick: 1, 2, 3
Border Transparency: OFF, ON, 2, 3
Language: Chinese, English, Spanish
Picture Mode: Standard, Soft, User, Vivid
Color Temperature: User, 6500K, 7200K, 9300K
Firmware Upgrade: USB Upgrade Port
Power Supply: DC 8-18V
Compatible Battery: NP-F550/F570/F750/F770/F960 Battery (Not included.)
Item Size: 18.9 x 14.5 x 3.2cm / 7.4 x 5.7 x 1.2
Item Weight: 560g / 19.8oz
Package Size: 23.2 x 23.2 x 7cm / 9.1 x 9.1 x 2.8
Package Weight: 1088g / 2.4Lbs
1 x Camera Monitor with Sunshade
1 x Hot Shoe Adapter
2 x HD Cable
1 x Pouch
1 x User Manual (English/Chinese)
Camera and battery are not included.
