1.850.000₫
Sản phẩm đã hết hàng
Bạn có thể xem các sản phẩm tương tự.Mô tả sản phẩm
This product is practical. It is convenient to install and simple to wire.
Features:
Fine-quality and heat-resistant material.
Little fraction, high running speed and quiet.
Small size, easy to install and take off.
Equipped with a refrigeraton fan in the motor rear.
It can be used to engrave and drill for solid wood, PCB, etc.
Control method: manual potentiometer control or external 0-10V control.
Pulse width technology makes it more steady.
Over-current protection cut-off device keeps the performance more reliable.
Soft starter can eliminate excessive starting current of the motor.
The speed controller connects with termianls, more convenient.
Specifications:
Spindle specifications:
Working voltage: DC 24-100V
Power: 500W
Rotation rate: 12000rpm/min (idling max)
Torque: 5000G/Centimeter
Insulation resistance: 2MΩ
Insulation dielectric strength: 400V
Diameter: 52mm
Chuck length: 45mm
Chuck diameter: 16mm
Motor lenght (approximately): 200mm
Spindle radial runout: 0.01-0.03mm
Speed controller specifications:
Wide input range: AC 110V-220V
Output: DC 0-100V
Maximum current output: 6A
Control method: manual potentiometer control
Speed controller size: 130 x 100 x 50mm / 5.1 x 3.9 x 2in
Mounting fixture length: 88.9mm / 3.5in
Mounting fixture width: 38mm / 1.5in
Mounting fixture internal diameter: 52mm / 2.0in
Pitch-row (width): 20mm / 0.7in
Pitch-row (length): 70mm / 2.7in
Connection mode: terminals (quick and convenient)
Package size: 230 x 160 x 130mm / 9.1 x 6.3 x 5.1in
Package weight: 1.86kg / 65.6oz
Working environment:
1. Air temperature: -10～40C
2. Air relative humidity: 85%
3. Well-ventilated and no violent impact.
Package List:

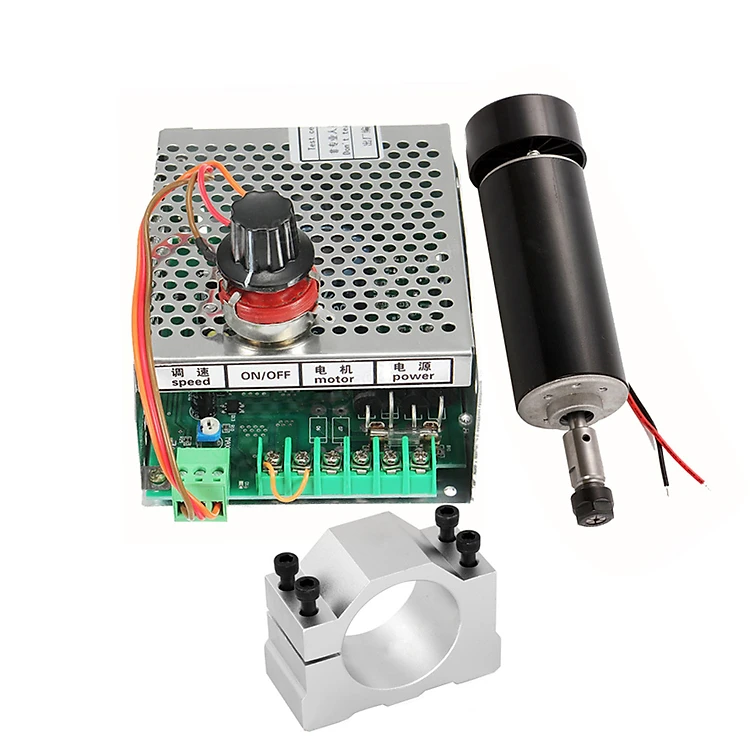

1 x 500W Spindle Motor
1 x Speed Controller
1 x Mounting Fixture
Features:
Fine-quality and heat-resistant material.
Little fraction, high running speed and quiet.
Small size, easy to install and take off.
Equipped with a refrigeraton fan in the motor rear.
It can be used to engrave and drill for solid wood, PCB, etc.
Control method: manual potentiometer control or external 0-10V control.
Pulse width technology makes it more steady.
Over-current protection cut-off device keeps the performance more reliable.
Soft starter can eliminate excessive starting current of the motor.
The speed controller connects with termianls, more convenient.
Specifications:
Spindle specifications:
Working voltage: DC 24-100V
Power: 500W
Rotation rate: 12000rpm/min (idling max)
Torque: 5000G/Centimeter
Insulation resistance: 2MΩ
Insulation dielectric strength: 400V
Diameter: 52mm
Chuck length: 45mm
Chuck diameter: 16mm
Motor lenght (approximately): 200mm
Spindle radial runout: 0.01-0.03mm
Speed controller specifications:
Wide input range: AC 110V-220V
Output: DC 0-100V
Maximum current output: 6A
Control method: manual potentiometer control
Speed controller size: 130 x 100 x 50mm / 5.1 x 3.9 x 2in
Mounting fixture length: 88.9mm / 3.5in
Mounting fixture width: 38mm / 1.5in
Mounting fixture internal diameter: 52mm / 2.0in
Pitch-row (width): 20mm / 0.7in
Pitch-row (length): 70mm / 2.7in
Connection mode: terminals (quick and convenient)
Package size: 230 x 160 x 130mm / 9.1 x 6.3 x 5.1in
Package weight: 1.86kg / 65.6oz
Working environment:
1. Air temperature: -10～40C
2. Air relative humidity: 85%
3. Well-ventilated and no violent impact.
Package List:
1 x 500W Spindle Motor
1 x Speed Controller
1 x Mounting Fixture
