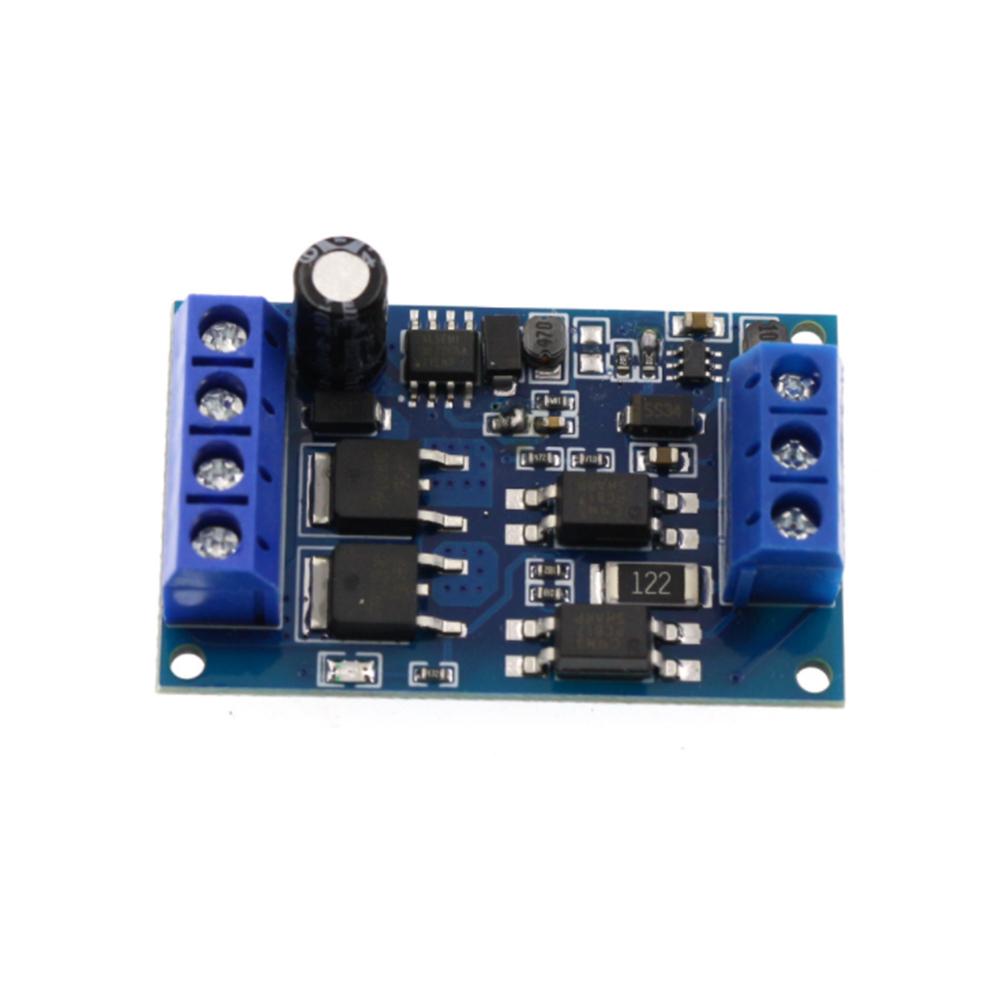

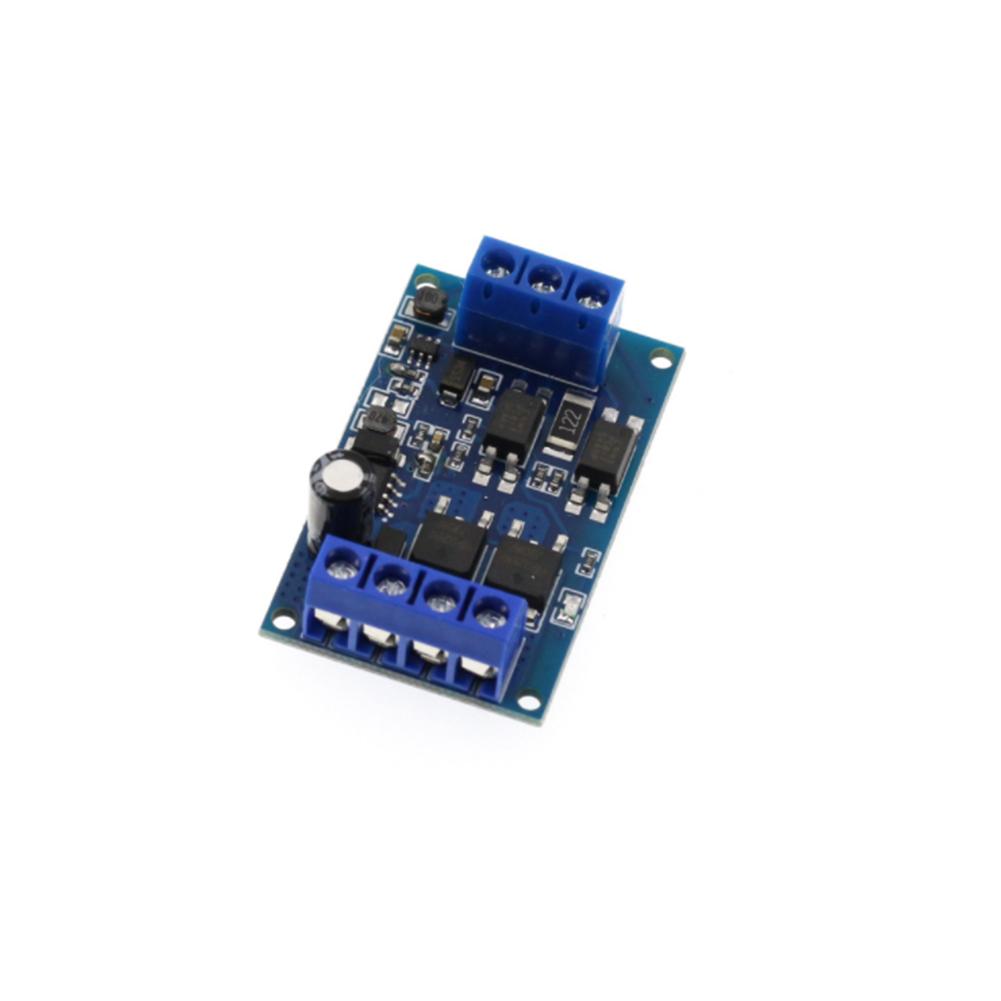

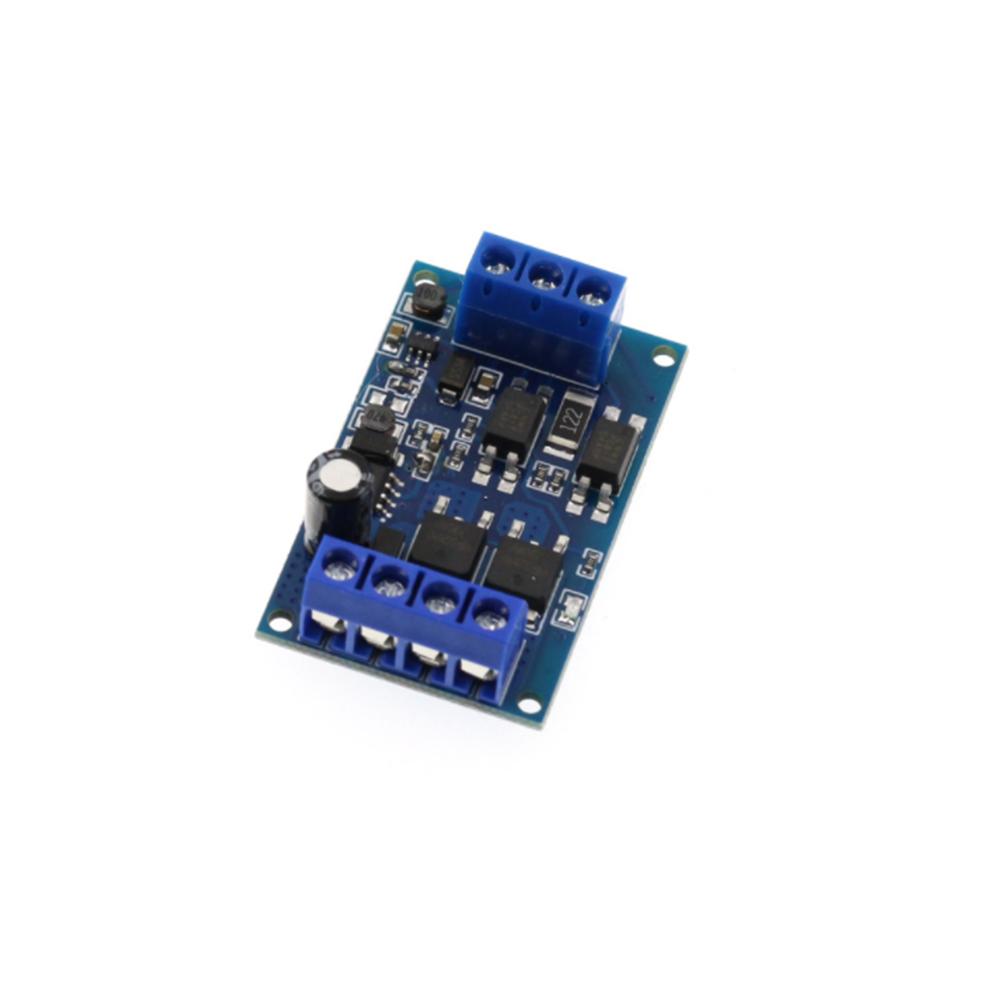

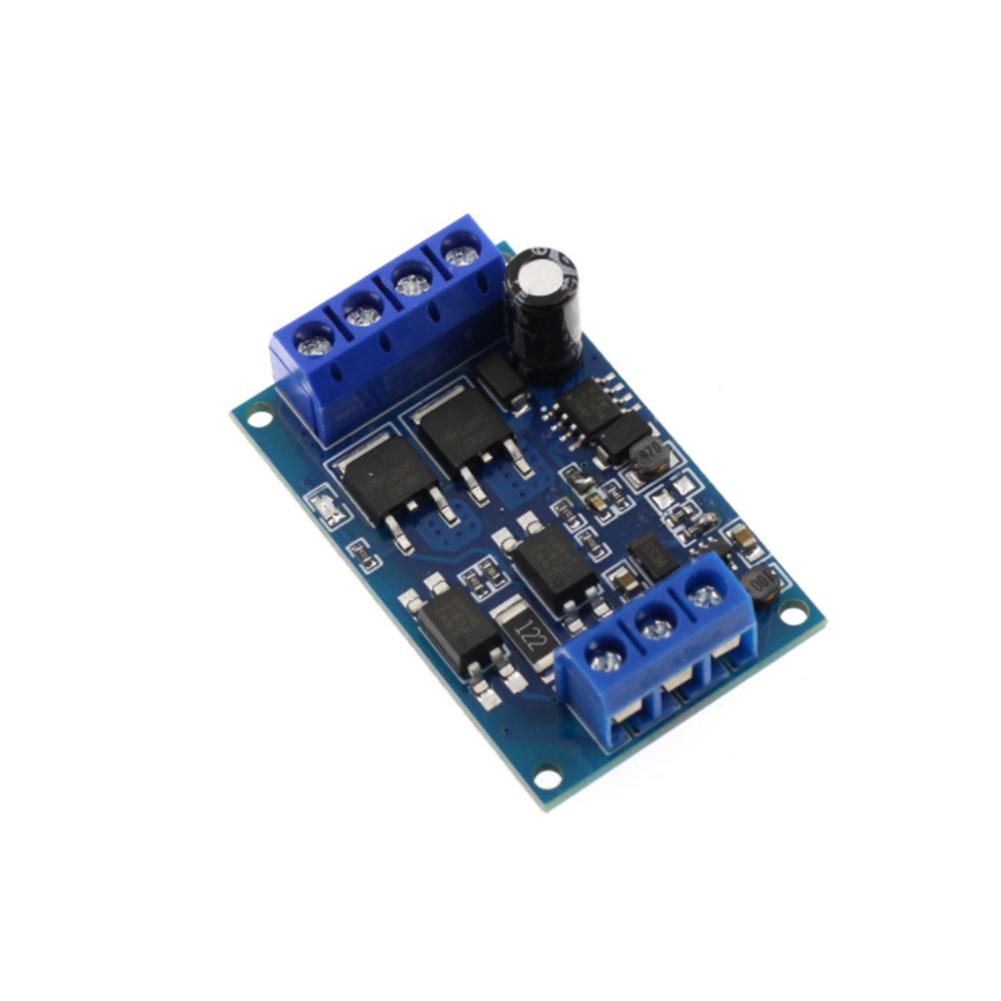

PCB High-power MOS FET Trigger Drive Switch Module PWM Regulator Control Board

Description:
Name: Control Board
Operating voltage: DC 4V-60V;

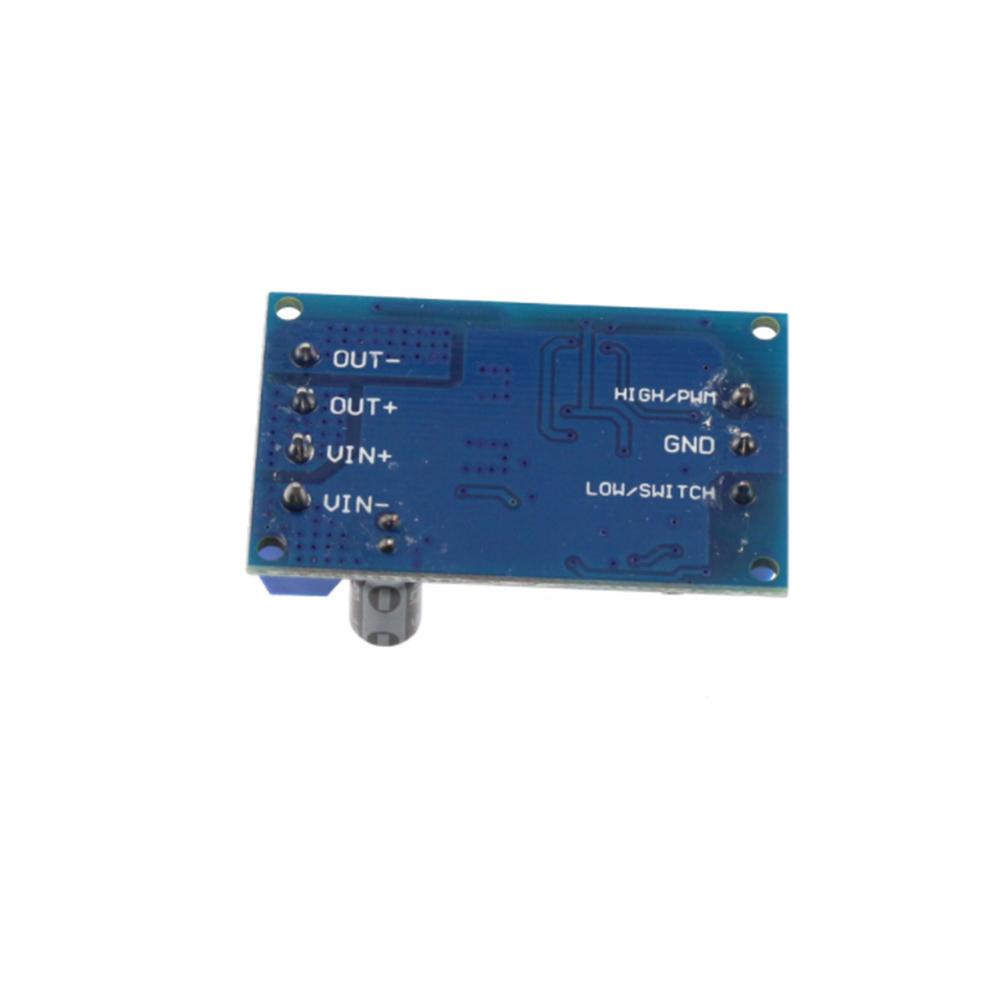

Trigger source: high level trigger (DC3.0V-24V), low level trigger (DC 0.0V ~ 0.6V), switch control, can connect MCU IO port, PLC interface, DC power supply, etc. PWM signal, support signal frequency range of 0-2.5KHZ.
Output capacity: DC 4V-60V, continuous current 10A at room temperature, power 600W! Auxiliary cooling conditions, the current up to 15A.
Life: unlimited switch;
Working temperature: -40-85 °;
Size: 3.4 * 1.7 * 1.2cm
At the same time, there is only one signal to control the module, can not use two or more signals to control the module;
High level trigger voltage range: DC3.0V ~ 24V, the trigger signal in the 3.0V ~ 24V, MOS tube conduction; less than 0.6V, that is 0V ~ 0.6V, MOS tube is closed; signal voltage must not 0.6V ~ 3.0V, because the MOS tube is not fully open, high-power output will burn MOS
Low-level trigger voltage range: DC 0V ~ 0.6V, that trigger signal in the 0V ~ 0.6V, MOS tube conduction; higher than 3.0V, MOS tube is closed; signal voltage must not be 0.6V ~ 3.0V, Because the MOS tube is not fully open, high-power output will burn MO
Application
It can control high-power equipment, such as motors, bulbs, LED lights with, DC motors, micro-pumps, solenoid valves and so on. If you enter the PWM signal, you can control the motor speed, lamp brightness and so on .

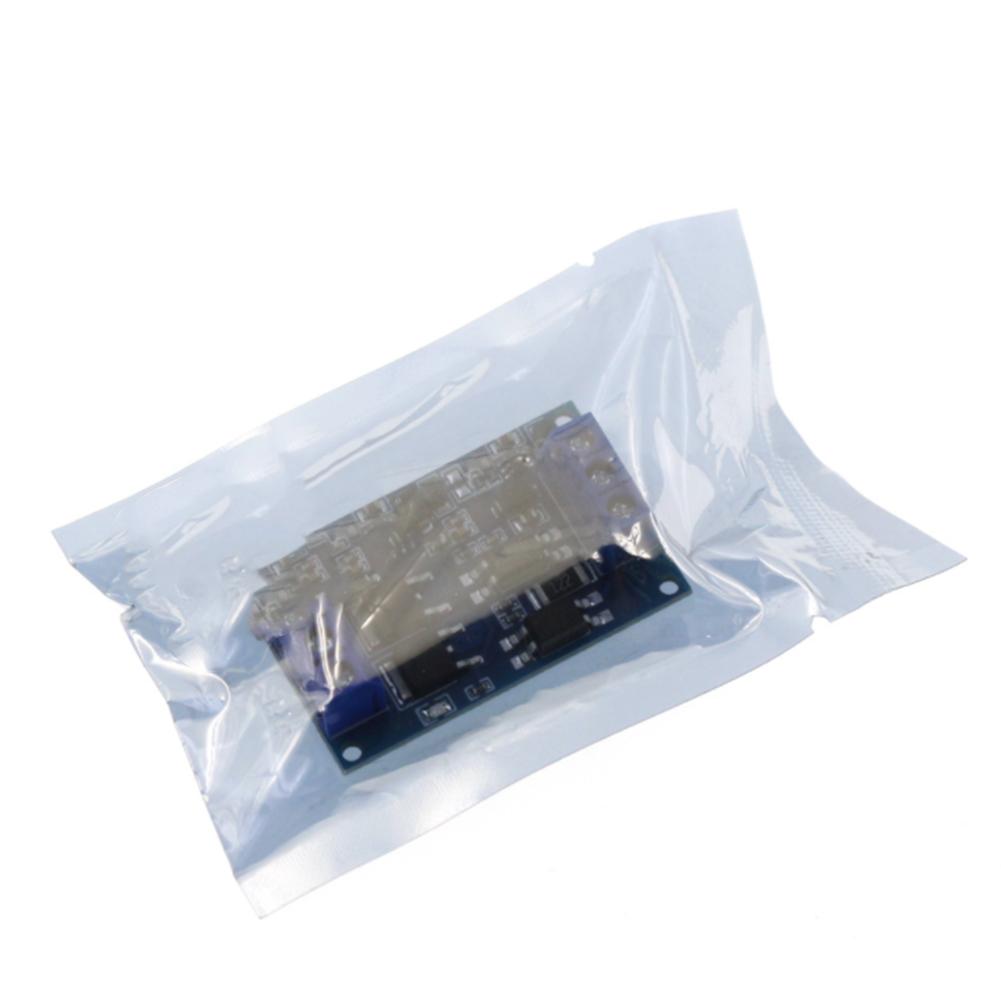

Packing list:
1 x High-power MOS FET Trigger Drive Switch Module PWM Regulator Control

Note:
e allow 0-1cm error due to manual measurement. Please make sure you do not mind before you bid.
to the difference between different monitors, the picture may not reflect the actual color of the item.
