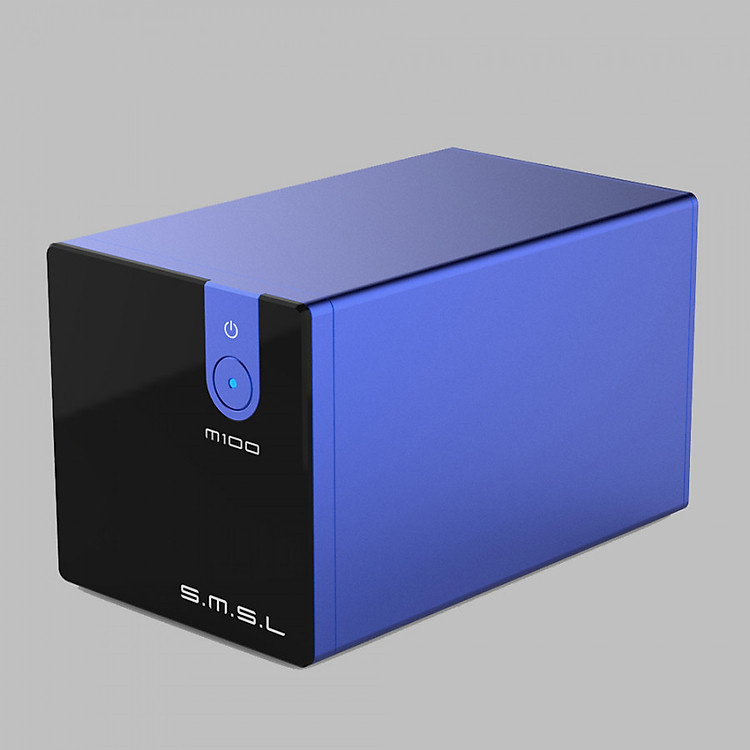

Thiết Bị Kết Nối Và Khuyếch Đại Âm Thanh SMSL M100
2.861.000
Sản phẩm đã hết hàng
Bạn có thể xem các sản phẩm tương tự.Mô tả sản phẩm
Features:
XMOS 2nd generation USB audio solution. Supports PCM signal up to 32bit/768kHz and native DSD up to DSD512.
Can be hooked up with smart phones via OTG USB input.
Two ultra-low phase noise crystal for 44.1/45kHz multiple frequencies.
High performance 32bit/768kHz DAC (AK4452) for high dynamic range and more details.
Built-in high-dfficiency power module and lots of low-noise LDOs provide pure power for analog circuit.
Aux power supply for phones connection.
Lots of audio grade components, include MELF resistors, NP0 capacitor, Gold-plated jacks.
Note: When using phones to connect the USB, you need to connect a DC 5V power for not making the phone overcurrent. Please do not use Quick-Charge power because the Quick-Charge power may output over 5V.
Specifications:
Brand Name: S.M.S.L
Model Number: M100
Input: USB, Optical, Coaxial
Output: RCA
USB Transmission Mode: Asynchronous Transmission
USB Compatibility: for Windows 7/8/8.1/10, for Mac OS X10.6 or higher, for Linux
THD+N: 0.0005%
SNR: 106dB
Dynamic Range: 114dB
Bit Depth:
USB: 1bit-32bit
Optical / Coaxial: 24bit
Sampling Rate:
USB: 44.1-768kHz DSD64, DSD128, DSD256, DSD512
Optical / Coaxial: 32-192kHz
Power Consumption: 1.2W
Standby Power: 0.1W
Color: Black, Blue (Optional)
Item Size: 9.3 x 5.5 x 5.5cm / 3.66 x 2.16 x 2.16in
Item Weight: 257g / 9.06oz
Package Size: 17.4 x 8.3 x 7.9cm / 6.85 x 3.26 x 3.11in
Package Weight: 367g / 12.95oz
Package List:
1 x Audio Decoder
1 x Micro-USB to USB Cable
1 x User Manual (English / Chinese)
XMOS 2nd generation USB audio solution. Supports PCM signal up to 32bit/768kHz and native DSD up to DSD512.
Can be hooked up with smart phones via OTG USB input.
Two ultra-low phase noise crystal for 44.1/45kHz multiple frequencies.
High performance 32bit/768kHz DAC (AK4452) for high dynamic range and more details.
Built-in high-dfficiency power module and lots of low-noise LDOs provide pure power for analog circuit.
Aux power supply for phones connection.
Lots of audio grade components, include MELF resistors, NP0 capacitor, Gold-plated jacks.
Note: When using phones to connect the USB, you need to connect a DC 5V power for not making the phone overcurrent. Please do not use Quick-Charge power because the Quick-Charge power may output over 5V.
Specifications:
Brand Name: S.M.S.L
Model Number: M100
Input: USB, Optical, Coaxial
Output: RCA
USB Transmission Mode: Asynchronous Transmission
USB Compatibility: for Windows 7/8/8.1/10, for Mac OS X10.6 or higher, for Linux
THD+N: 0.0005%
SNR: 106dB
Dynamic Range: 114dB
Bit Depth:
USB: 1bit-32bit
Optical / Coaxial: 24bit
Sampling Rate:
USB: 44.1-768kHz DSD64, DSD128, DSD256, DSD512
Optical / Coaxial: 32-192kHz
Power Consumption: 1.2W
Standby Power: 0.1W
Color: Black, Blue (Optional)
Item Size: 9.3 x 5.5 x 5.5cm / 3.66 x 2.16 x 2.16in
Item Weight: 257g / 9.06oz
Package Size: 17.4 x 8.3 x 7.9cm / 6.85 x 3.26 x 3.11in
Package Weight: 367g / 12.95oz
Package List:
1 x Audio Decoder
1 x Micro-USB to USB Cable
1 x User Manual (English / Chinese)
