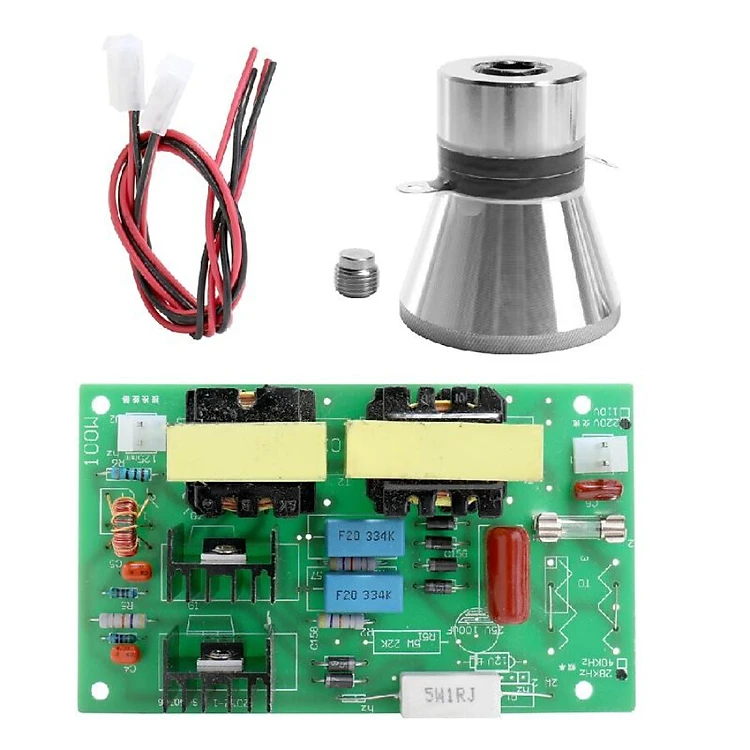

Ultrasound cleaner with power driver board and transducer which is widely used in ultrasound cleaning and so on.

Features:
Board radiating surface.
Homogeneous sounding board.
Widely used in ultrasound cleaning and so on.
High performance, high mechanical Q-value, high conversion efficiency.
Large amplitude, piezoelecric ceramic materials provides fine heat resistance.
Stable performance, large radiator, cooling fast.
The ultrasound generator can monitor the power system frequency ultrasound power.
According to different requirements of users, real-time adjustment of various parameters such as the power, amplitude, and running time.

Specifications:
Type: 50W 40KHz Transducer, 60W 28KHz Transducer(optional)
Driver Board Voltage: 220V AC 28KHz
Driver Board Power: 100W
Model: Ultrasound Cleaner

50W 40KHz Transducer:
Transducer Size: 55 * 55 * 50mm / 2.17 * 2.17 * 1.97in
Transducer Weight: 245g / 8.64ounce
Package Weight: 522g / 1.15lb

60W 28KHz Transducer:
Transducer Size: 70 * 60 * 60mm / 2.76 * 2.36 * 2.36in
Transducer Weight: 456g / 1.01lb
Package Weight: 728g / 1.60lb

Cable Length: 280mm / 11.02in
Driver Board Weight: 222g / 7.83ounce
Driver Board Size: 127 * 75 * 40mm / 5 * 2.95 * 1.57in
Package Size: 195 * 90 * 65mm / 7.68 * 3.54 * 2.56in

Wiring Instructions:
Circuit board shall not be empty power.
No cleaning fluid cleaning.
Shock the first two lugs, the middle of the two pieces of ceramic sheet for the positive electrode, by the upper and lower metal column for the negative, may not be reversed.
On the other hand, the larger one of the two silver layers is the positive one and the smaller one is the negative one. When welding the power cord, it must be soldered on the side with two silver layers, The other side of the vibration surface, can be affixed to the wash basin under (this is purchased ceramic transducer components described), ceramic sheet is not resistant to high temperature silver, soldering the power cord when the temperature does not exceed 280 degrees, the most Good use of constant temperature iron, the iron temperature can be set to 250 degrees.
Shock head on the larger side (with a screw hole) for the vibration surface can be stuck in the wash basin at the end of the wash basin to a reliable grounding.
Earthquake head or transducer ceramic tile application head adhesive firmly affixed to the bottom of the wash basin.
Two shock tip parallel connection to the circuit board terminal, a circuit board up to two with the first shock, but also with a shock supporting the use of.
Positive and negative output pole respectively positive and negative polar link, can not pick the wrong question in time advice, to ensure safety.
Remember to wash pots and reliable grounding and the power leakage protection switch, to ensure safety.

Note:
Please allow 1-3mm error due to manual measurement.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.

Package List:
1 * Driver Board
1 * Transducer
